ADVENTURER ONE
Description
If there’s one thing this Adventurer knows how to do, it’s earn its keep. Sure, it may be the most comfortable, dependable utility car ever built, but it’s also the least expensive to maintain. Engineered with heavy-duty features, and a powerful Yamaha engine, this hardworking vehicle can go nonstop without requiring special attention. In fact, it handles every job so well, you may forget it’s there. So whether you’re hauling hay, or moving dirt, this Adventurer leaves other cars in the dust.
Key Parameters
Detailed Parameters
| Official Web | www.yamahagolfcar.com |
| Maker | YAMAHA |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | ADVENTURER ONE |
| Year | |
| Frame | HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat. |
| Body &Finish | Custom-formulated thermoplastic olefin and the front is painted with a two-part top coat of high-luster automotive-grade polyurethane |
| Front Body&Finish | |
| Rear Body & Finish | |
| Chassis | |
| Overall Length | 2660 mm (104.7 in) |
| Overall Width | 1243 mm (48.9 in) |
| Overall Height | |
| Overall Height(no canopy) | |
| Overall Height(with canopy) | |
| Wheel Base | 1640 mm (64.6 in) |
| Front Wheel Track | 883 mm (34.7 in) |
| Rear Wheel Track | 980 mm (38.6 in) |
| Ground Clearance(at differential) | 112 mm (4.4 in) |
| Power Source | |
| Valve Train | |

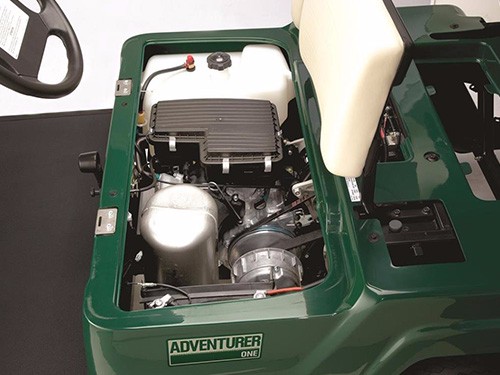

| Motor Type | Single Cylinder 60° Inlcine OHV |
| Cylinders | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | |
| Fuel System | |
| Electric System | |
| Batteries(qty/type) | |
| Key or Pedal | |
| Battery Charger | |
| Speed Controller | |
| Oil Capacity | |
| Fuel Capacity | 22.0 liters (5.8 U.S. gal) |
| Maximum Torque | 25.5/2500 (Nm/rpm) |
| Seating Capacity | 2 persons |
| Hill Climbing Capacity | 20° |
| Minimum Turning Radius | 2.8 m (9.2 ft) |
| Vehicle Capacity | |
| Dry Weight Less Batteries | |
| Dry Weight(without batteries) | 345 kg (760.6 lbs) |
| Curb Weight | |
| Outside Clearance Circle | |
| Speed - High (Level Ground) | |
| Speed - Low (Level Ground) | |
| Speed Range | |
| Forward Speed (Level Ground) | |
| Reverse Speed (Level Ground) | |
| Ground Speed (level ground) | |
| Turning Radius | |
| Steering | Self-compensating single reduction helical rack-and-pinion, permanently lubricated with sealed, greaseless tie-rod ends |
| Suspension | |
| Service Brake | |
| Brakes | |
| Brake Stopping Distance | |
| Parking Brake | |
| Seating | |
| Battery Charging Time | |
| Running Kilometer |
