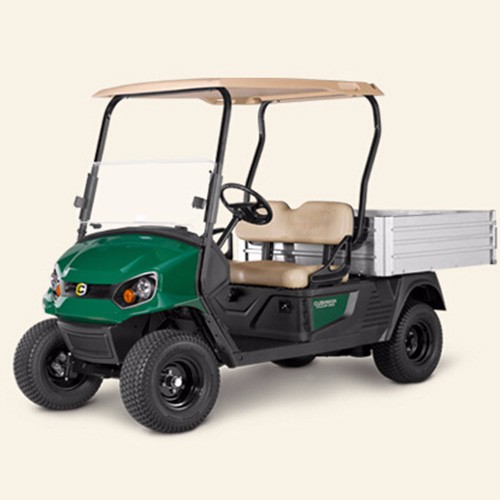

HAULER 1200
Description
Your work is unforgiving. Let the Hauler® 1200 help carry the load. With a customizable bed and practical dash design, it's ready to transport the tools and equipment every job needs.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | HAULER 1200 |
| Year | |
| Frame | Welded Steel with Durashield™ Powder Coat |
| Body &Finish | |
| Front Body&Finish | Injection-Molded TPO, Painted |
| Rear Body & Finish | Injection-Molded, TPO, Painted |
| Chassis | |
| Overall Length | 115 in (292 cm) |
| Overall Width | 49.4 in (125 cm) |
| Overall Height | |
| Overall Height(no canopy) | 47.3 in (120 cm) (Top of steering wheel) |
| Overall Height(with canopy) | 71.0 in (179 cm) |
| Wheel Base | 77.0 in (196 cm) |
| Front Wheel Track | 35.0 in (89 cm) |
| Rear Wheel Track | 39.0 in (98 cm) |
| Ground Clearance(at differential) | 3.5 in (9 cm) |
| Power Source | 4 Cycle 24.5 cu in (401 cc) |
| Valve Train | |
| Motor Type | |
| Cylinders | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 13.5 hp (10.1 kW) Exceeds SAE J1940 Std. |
| Fuel System | |
| Electric System | Starter/Generator. Solid State Regulator |
| Batteries(qty/type) | One, 12 Volt Maintenance Free |
| Key or Pedal | Pedal |
| Battery Charger | |
| Speed Controller | |
| Oil Capacity | |
| Fuel Capacity | 6.0 Gallon (22.7 L) Tank |
| Maximum Torque | |
| Seating Capacity | 2 Persons |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Vehicle Capacity | |
| Dry Weight Less Batteries | |
| Dry Weight(without batteries) | 940 lb (426.36 kg) |
| Curb Weight | 980 lb (444.52 kg) |
| Outside Clearance Circle | |
| Speed - High (Level Ground) | |
| Speed - Low (Level Ground) | |
| Speed Range | |
| Forward Speed (Level Ground) | |
| Reverse Speed (Level Ground) | |
| Ground Speed (level ground) | |
| Turning Radius | |
| Steering | Self-Compensating Rack and Pinion |
| Suspension | |
| Service Brake | Rear Wheel Mechanical Self-Adjusting Drum |
| Brakes | |
| Brake Stopping Distance | |
| Parking Brake | Self-Compensating, Single Point Engagement |
| Seating | |
| Battery Charging Time | |
| Running Kilometer |
