SHUTTLE 6
Description

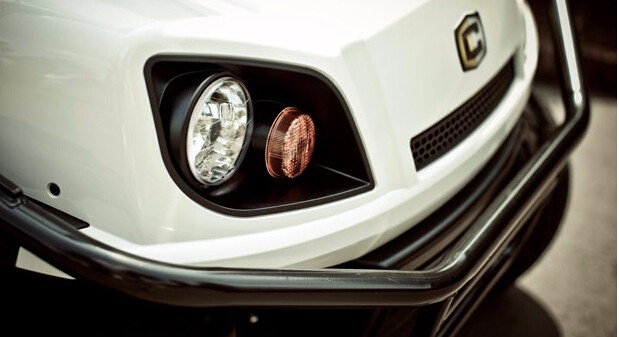

Take your people-moving power to the next level with the six-passenger Shuttle™ 6 personnel carrier. With spacious bench seating, headlights for early morning or late nights, and your choice of gas or electric powertrains, it always delivers a safe and comfortable ride.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | SHUTTLE 6 |
| Year | |
| Frame | Welded Steel with Powder Coat |
| Body &Finish | |
| Front Body&Finish | Injection molded TPO |
| Rear Body & Finish | Fiberglass and Gelcoat |
| Chassis | |
| Overall Length | 136.0 in (345 cm) |
| Overall Width | 48.5 in (123 cm) |
| Overall Height | |
| Overall Height(no canopy) | 48.6 in (123 cm) (Top of steering wheel) |
| Overall Height(with canopy) | 72.0 in (183 cm) |
| Wheel Base | 93.5 in (237 cm) |
| Front Wheel Track | 34.2 in (86.7 cm) |
| Rear Wheel Track | 38.0 in (97 cm) |
| Ground Clearance(at differential) | 4.3 in (11 cm) |
| Power Source | 4 Cycle 24.5 cu in (401 cc). Low Emission |
| Valve Train | |
| Motor Type | |
| Cylinders | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 13.5 hp (9.7 kW) Exceeds SAE J1940 Standard |
| Fuel System | |
| Electric System | Starter/Generator, Solid-State Regulator |
| Batteries(qty/type) | One, 12-Volt Maintenance Free |
| Key or Pedal | Pedal |
| Battery Charger | |
| Speed Controller | |
| Oil Capacity | |
| Fuel Capacity | 6.0 Gallon (22.7 L) tank |
| Maximum Torque | |
| Seating Capacity | 6 Person |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Vehicle Capacity | |
| Dry Weight Less Batteries | |
| Dry Weight(without batteries) | 1124 lb (511 kg) |
| Curb Weight | 1164 lb (529 kg) |
| Outside Clearance Circle | 25.5 ft (7.8 m) |
| Speed - High (Level Ground) | |
| Speed - Low (Level Ground) | |
| Speed Range | |
| Forward Speed (Level Ground) | |
| Reverse Speed (Level Ground) | |
| Ground Speed (level ground) | 16 mph ± 0.5 (26 kph ± 0.8 kph) |
| Turning Radius | |
| Steering | Self-Compensating Reduction Rack and Pinion |
| Suspension | |
| Service Brake | Rear Wheel Mechanical Self-Adjusting Drum |
| Brakes | |
| Brake Stopping Distance | |
| Parking Brake | Self-Compensating Single Point Engagement |
| Seating | |
| Battery Charging Time | |
| Running Kilometer |
