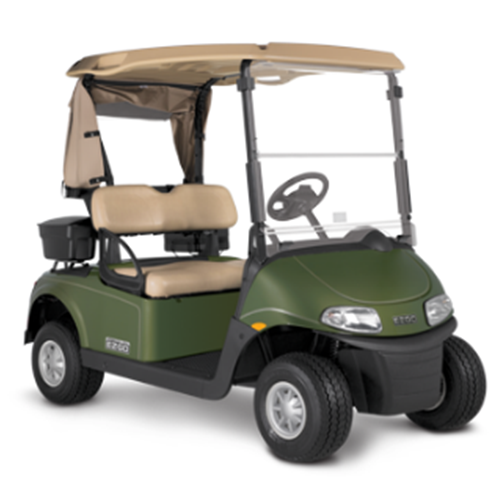

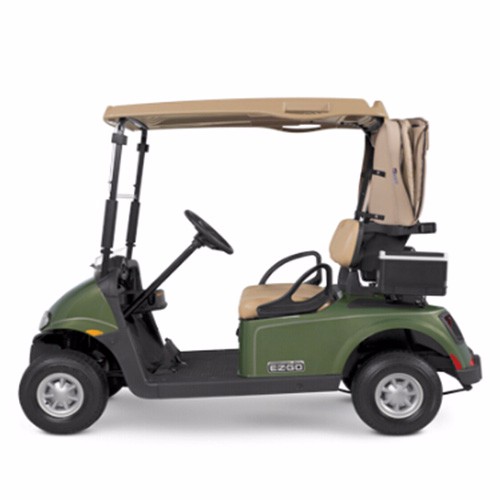

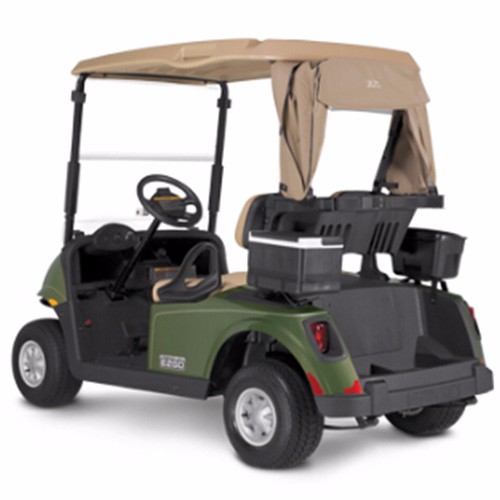

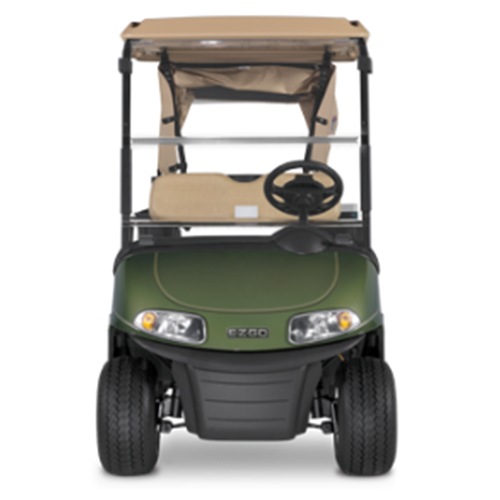

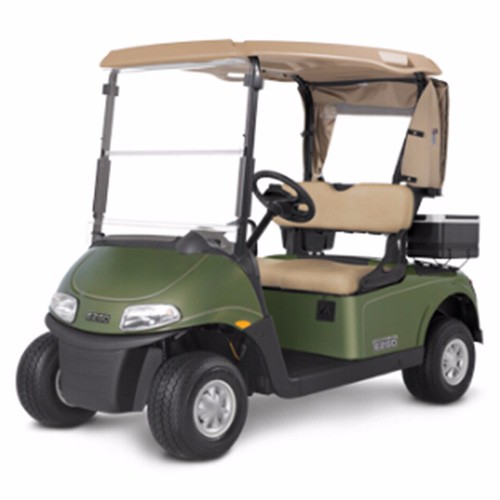

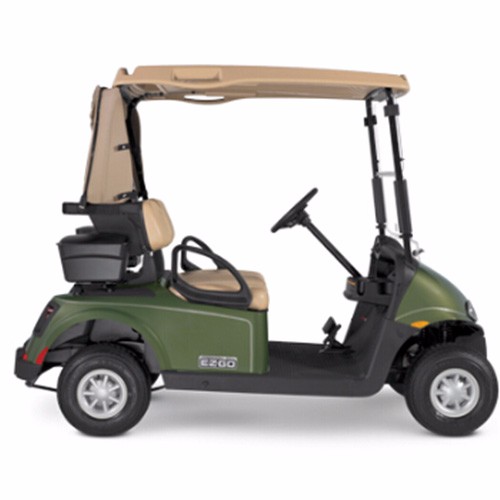

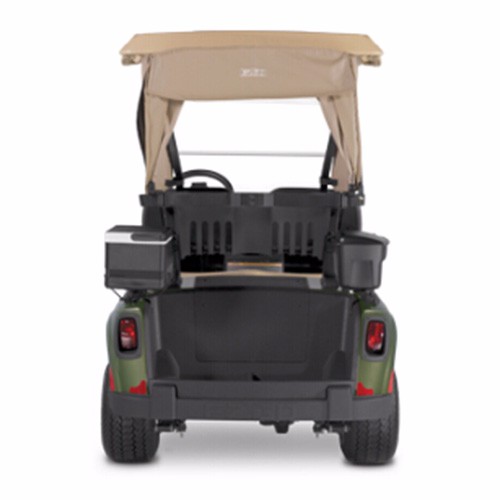

FREEDOM RXV
Description
PROVEN EFFICIENCY & UNEXPECTED EXTRAS
Freedom® RXV® models are equipped with a unique combination of 48-volt AC drive and IntelliBrake™ technology or a powerful 13.5-hp Kawasaki® gas engine. A modern look and golfer-focused upgrades add modern conveniences and comfort to every round.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | PERSONAL TRANSPORT |
| Model | FREEDOM RXV |
| Year | |
| Frame | Welded steel w/ Powder-Coat |
| Body &Finish | Injection Molded TPO |
| Front Body&Finish | |
| Rear Body & Finish | |
| Chassis | |
| Overall Length | 93.5 in (238 cm) |
| Overall Width | 47.0 in (119 cm) |
| Overall Height | |
| Overall Height(no canopy) | 47.0 in (119 cm) (top of steering wheel) |
| Overall Height(with canopy) | 70.0 in (178 cm) (top of sun canopy) |
| Wheel Base | 65.5 in (167 cm) |
| Front Wheel Track | 34.5 in (88 cm) |
| Rear Wheel Track | 38.5 in (98 cm) |
| Ground Clearance(at differential) | 3.0 in (8 cm) |
| Power Source | 4-cycle, 24.5 cu in (401 cc) low emissions |
| Valve Train | |
| Motor Type | |
| Cylinders | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 13.5 hp (10 kW) exceeds SAE J1940 standard |
| Fuel System | |
| Electric System | Starter/generator, solid state regulator |
| Batteries(qty/type) | One, 12-volt maintenance-free |
| Key or Pedal | |
| Battery Charger | |
| Speed Controller | |
| Oil Capacity | |
| Fuel Capacity | 5.85 gallons (23.1 L) |
| Maximum Torque | |
| Seating Capacity | 2-person |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Vehicle Capacity | |
| Dry Weight Less Batteries | |
| Dry Weight(without batteries) | 694 lb (315 kg) |
| Curb Weight | 734 lb (333 kg) |
| Outside Clearance Circle | 19.0 ft (5.8 m) |
| Speed - High (Level Ground) | |
| Speed - Low (Level Ground) | |
| Speed Range | |
| Forward Speed (Level Ground) | |
| Reverse Speed (Level Ground) | |
| Ground Speed (level ground) | 19.0 mph ± 0.5 mph (31 kph ± 0.8 kph) |
| Turning Radius | |
| Steering | Double-ended rack and pinion |
| Suspension | |
| Service Brake | Rear wheel mechanical, self-adjusting drums |
| Brakes | |
| Brake Stopping Distance | |
| Parking Brake | Self-compensating, single point engagement |
| Seating | |
| Battery Charging Time | |
| Running Kilometer |
