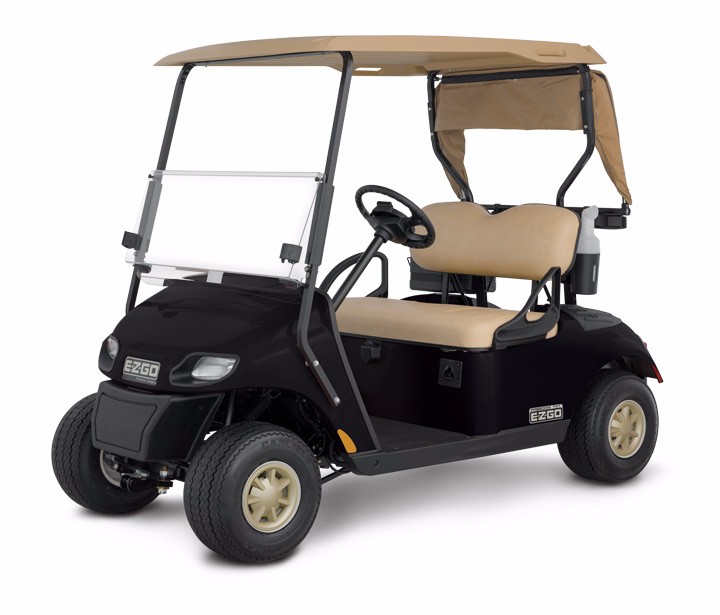

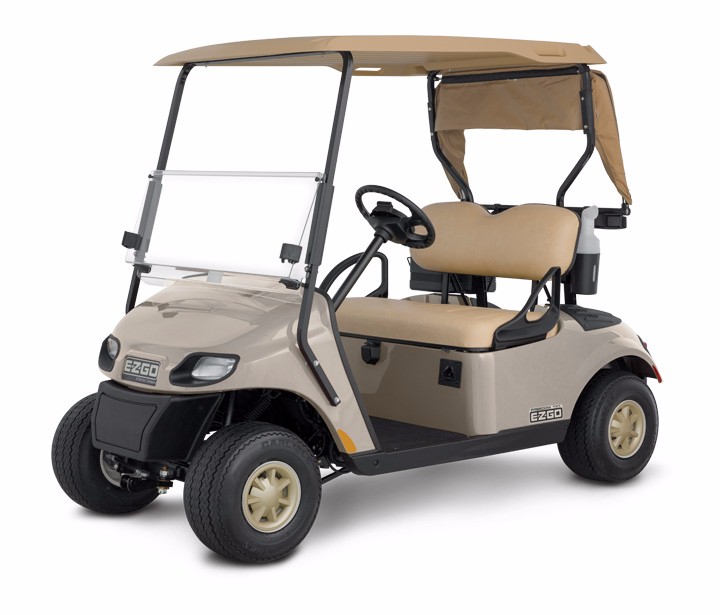

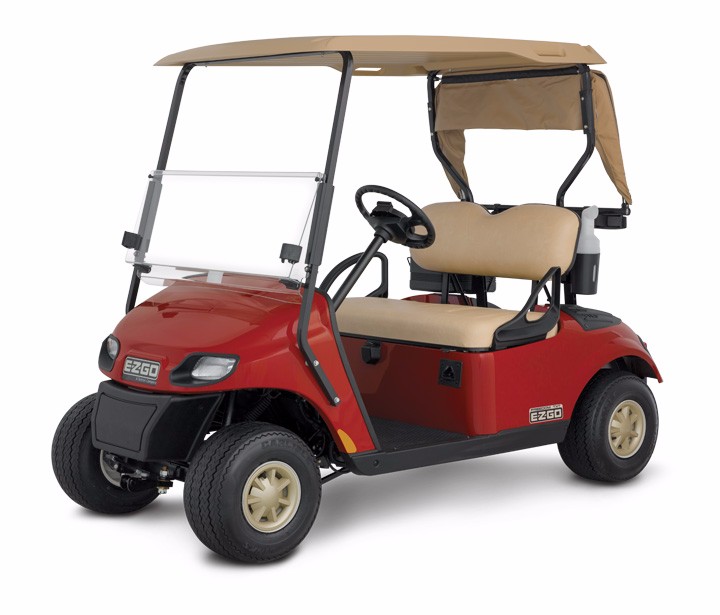

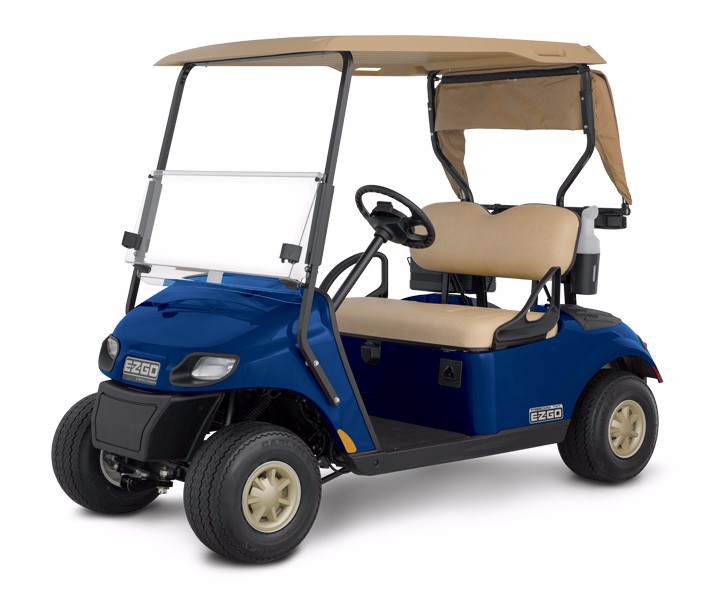

FREEDOM TXT
Description
RELIABILITY THAT TAKES YOU FARTHER
Efficient and equipped to move, the E-Z-GO® Freedom® TXT® is designed for life on and off the course. Ideal for gated and golf communities, it features all the functionality and amenities you need for short jaunts. No matter where you’re headed, you’ll have the power and style to get there with ease.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | PERSONAL TRANSPORT |
| Model | FREEDOM TXT |
| Year | 0 |
| Frame | Welded Steel with Powder-Coat Protection |
| Body &Finish | Injection Molded TPO |
| Front Body&Finish | |
| Rear Body & Finish | |
| Frame Chassis | |
| Overall Lenghth | 93.0 in (236 cm) |
| Overall Width | 47.0 in (119 cm) |
| Overall Height | |
| Overall Height(no canopy) | 47.0 in (119 cm) (top of steering wheel) |
| Overall Height(with canopy) | 68.5 in (174 cm) (top of sun canopy) |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | 34.5 in (88 cm) |
| Rear Wheel Track | 38.5 in (98 cm) |
| Ground Clearance(at differential) | 4.0 in (10 cm) |
| Power Source | 48-volt DC |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | |
| Electric System | 48-volt |
| Batteries(qty/type) | Six, 8-volt deep cycle |
| key or Pedal Start | |
| Battery Charger | 48 V PowerWise QE, 120 VAC, UL and CSA |
| Speed Controller | 250-amp solid-state controller |
| Drive Train | Motor shaft direct drive |
| Transaxle | Differential with helical gears |
| Gear Selection | Body mounted forward-neutral-reverse |
| Rear Axle Ratio | 12.44:1 |
| Seating Capacity | 2-person |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | 606 lb (275 kg) |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | |
| Curb Weight | 972 lb (431 kg) |
| Vehicle Load Capacity | 800 lb (360 kg) |
| Outside Clearance Circle | 19.0 ft (5.8 m) |
| Ground Speed (level ground) | 14.5-19.5 mph (23.3 kph +/- 31.4 kph) |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | 3 E-Z-GO golf cars with approved permanent tow bar |
| Steering | Self-compensating rack and pinion |
| Brakes | |
| Service Brake | Rear wheel mechanical self-adjusting drum |
| Parking Brake | Self-compensating, single point engagement |
| Battery charging time | |
| Running Kilometers |
