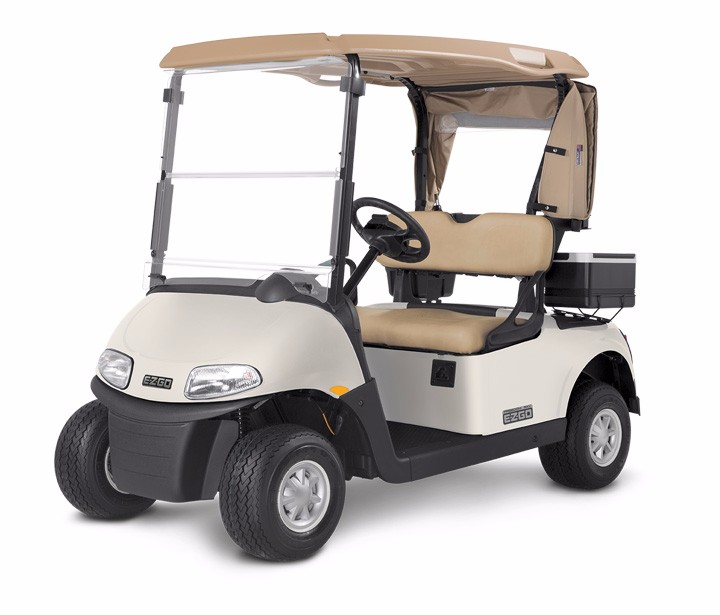

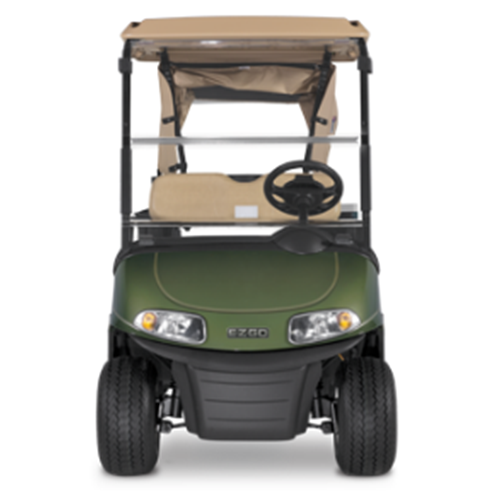

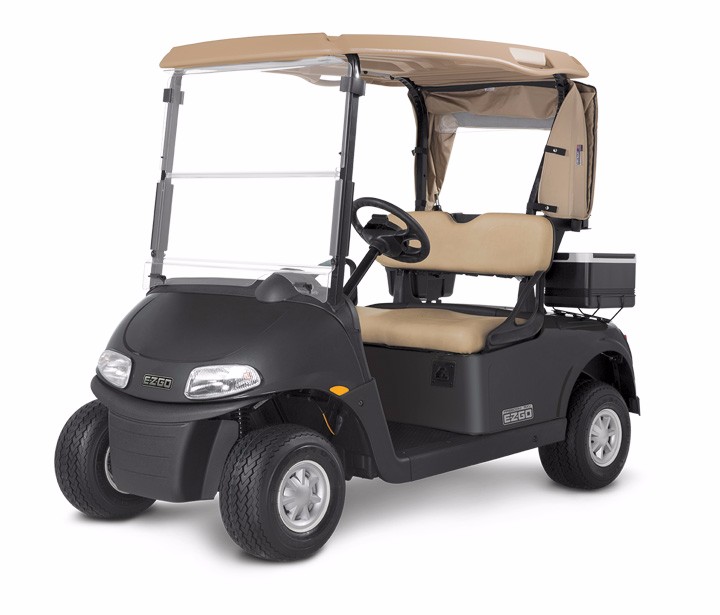

FREEDOM RXV
Description
PROVEN EFFICIENCY & UNEXPECTED EXTRAS
Freedom® RXV® models are equipped with a unique combination of 48-volt AC drive and IntelliBrake™ technology or a powerful 13.5-hp Kawasaki® gas engine. A modern look and golfer-focused upgrades add modern conveniences and comfort to every round.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | PERSONAL TRANSPORT |
| Model | FREEDOM RXV |
| Year | 0 |
| Frame | Welded steel w/ Powder-Coat |
| Body &Finish | Injection Molded TPO |
| Front Body&Finish | |
| Rear Body & Finish | |
| Frame Chassis | |
| Overall Lenghth | 46.5 in (118 cm) (top of steering wheel) |
| Overall Width | 47.0 in (119 cm) |
| Overall Height | |
| Overall Height(no canopy) | 46.5 in (118 cm) (top of steering wheel) |
| Overall Height(with canopy) | 69.5 in (177 cm) (top of sun canopy) |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | 34.5 in (88 cm) |
| Rear Wheel Track | 38.5 in (98 cm) |
| Ground Clearance(at differential) | 4.0 in (10 cm) |
| Power Source | 48-volt DC |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | |
| Electric System | 48-volt |
| Batteries(qty/type) | Four, 12-volt deep cycle |
| key or Pedal Start | |
| Battery Charger | 48 V PowerWise QE, 120 VAC, UL and CSA |
| Speed Controller | 235-amp solid-state controller |
| Drive Train | Motor shaft direct drive |
| Transaxle | Limited Slip Differential |
| Gear Selection | Limited Slip Differential |
| Rear Axle Ratio | 16.99:1 |
| Seating Capacity | 2-person |
| Transmission | 642 lb (291 kg) |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | |
| Curb Weight | 970 lb (440 kg) |
| Vehicle Load Capacity | 800 lb (360 kg) |
| Outside Clearance Circle | 19.2 ft (5.8 m) |
| Ground Speed (level ground) | 17.5 mph -19.5 mph (28 kph - 31 kph) |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | 3 E-Z-GO golf cars with approved permanent tow bar |
| Steering | Double-ended rack and pinion |
| Brakes | |
| Service Brake | Induction Motor |
| Parking Brake | Automatic Electro-Magnetic |
| Battery charging time | |
| Running Kilometers |
