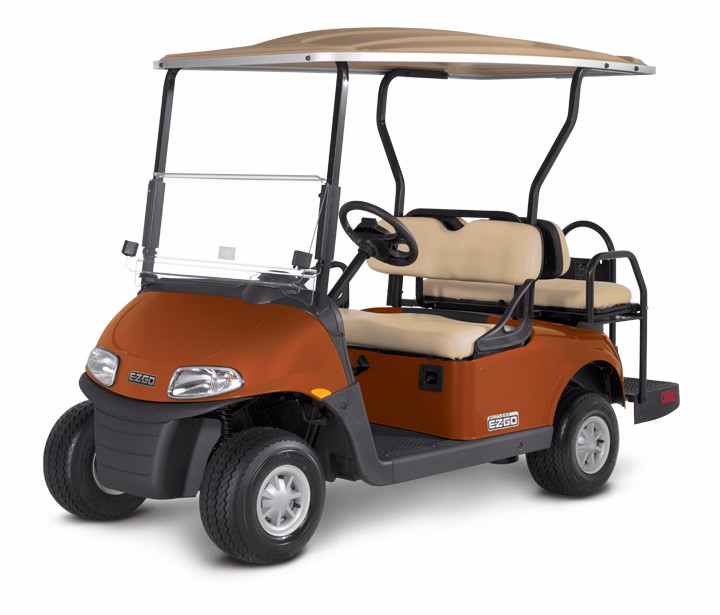

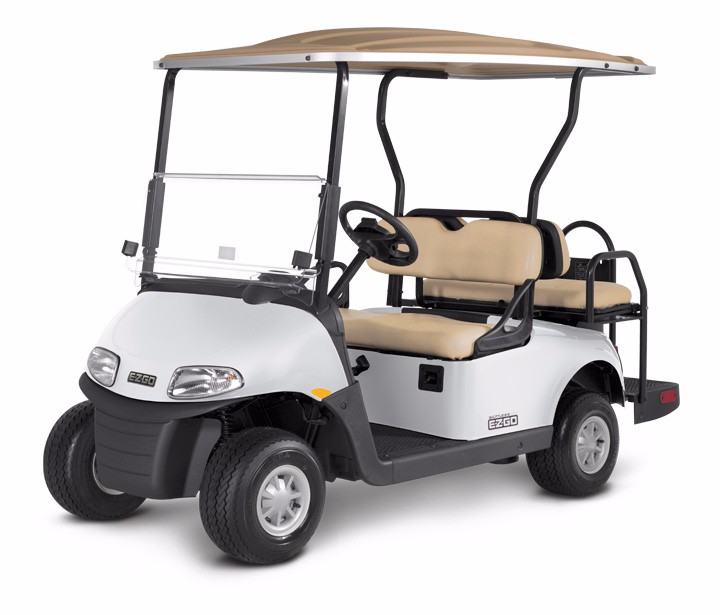

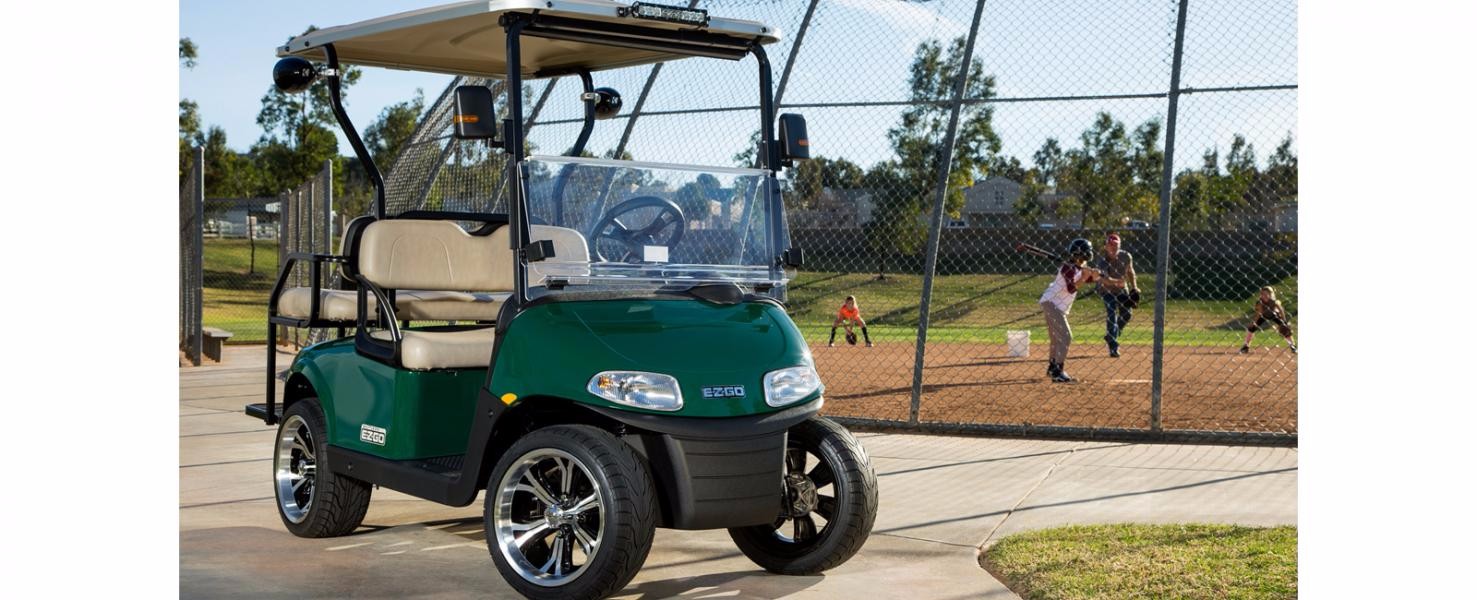

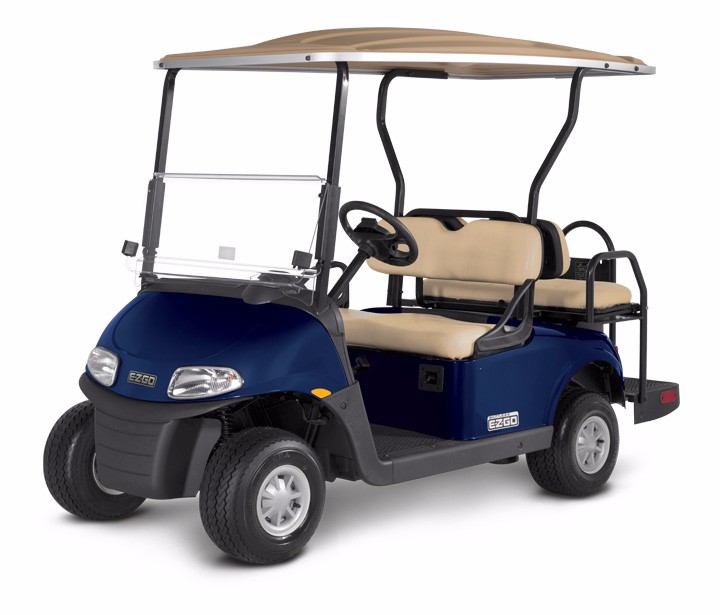

FREEDOM RXV 2+2
Description
GO WHEREVER THE DAY TAKES YOU.
This is your day, and the E-Z-GO Freedom RXV 2+2 can help you get the most from it. With all the premium features and enhanced comfort from the Freedom RXV, the Freedom RXV 2+2 adds room for the whole gang. So grab the kids and go wherever the day takes you!
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | PERSONAL TRANSPORT |
| Model | FREEDOM RXV 2+2 |
| Year | 0 |
| Frame | Welded steel w/ Powder-Coat |
| Body &Finish | Injection Molded TPO |
| Front Body&Finish | |
| Rear Body & Finish | |
| Frame Chassis | |
| Overall Lenghth | 105.5 in (268 cm) |
| Overall Width | 47.0 in (119 cm) |
| Overall Height | |
| Overall Height(no canopy) | 47.0 in (119 cm) (top of steering wheel) |
| Overall Height(with canopy) | 75.0 in (191 cm) |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | 34.5 in (88 cm) |
| Rear Wheel Track | 38.5 in (98 cm) |
| Ground Clearance(at differential) | 4.0 in (10 cm) |
| Power Source | 48-volt DC |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | |
| Electric System | 48-volt |
| Batteries(qty/type) | Four, 12-volt deep cycle |
| key or Pedal Start | |
| Battery Charger | 48 V DC PowerWise high frequency, UL and CSA |
| Speed Controller | 235 amp AC controller |
| Drive Train | Motor shaft direct drive |
| Transaxle | Limited slip differential |
| Gear Selection | Key switch |
| Rear Axle Ratio | 16:99:1 |
| Seating Capacity | 4-person |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | 674 lb (306 kg) |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | 1002 lb (455 kg) |
| Curb Weight | |
| Vehicle Load Capacity | 720 lb (325 kg) |
| Outside Clearance Circle | 19.2 ft (5.8 m) |
| Ground Speed (level ground) | 8-15 mph (12.8-24.1 kph) |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | |
| Steering | Double-ended rack and pinion |
| Brakes | |
| Service Brake | Electric motor |
| Parking Brake | Automatic electro-magnetic |
| Battery charging time | |
| Running Kilometers |
