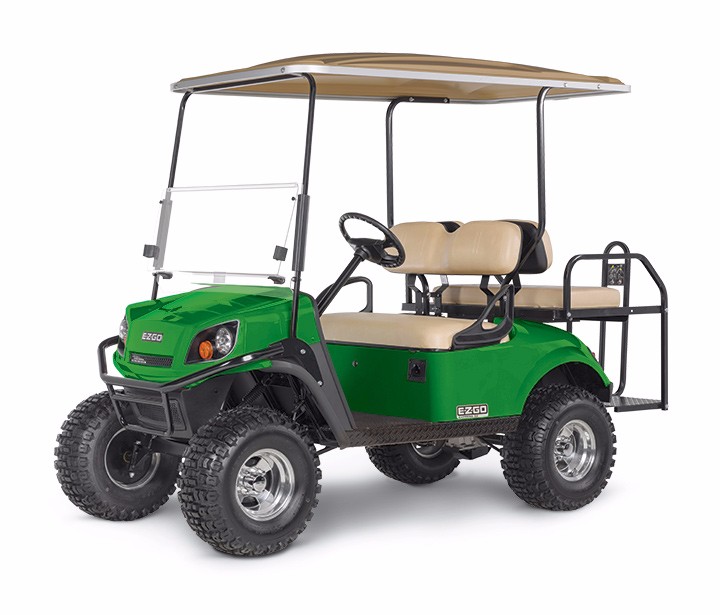

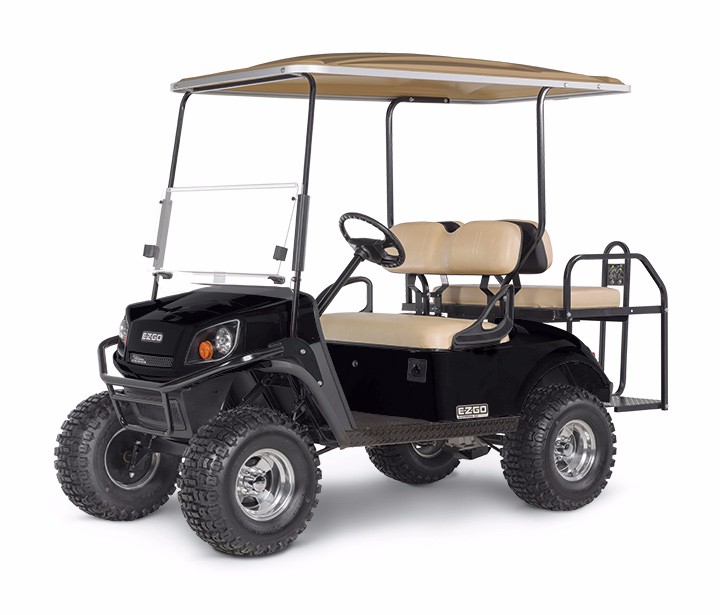

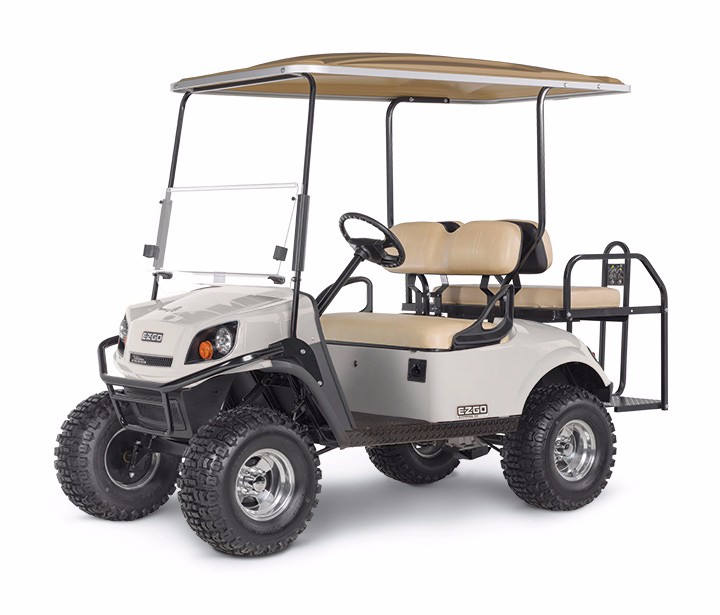

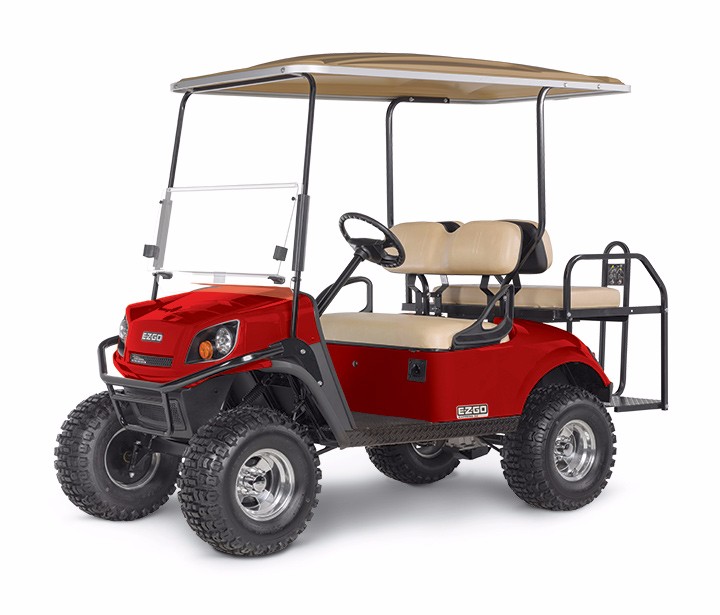

EXPRESS S4
Description
CHOOSE YOUR ADVENTURE.

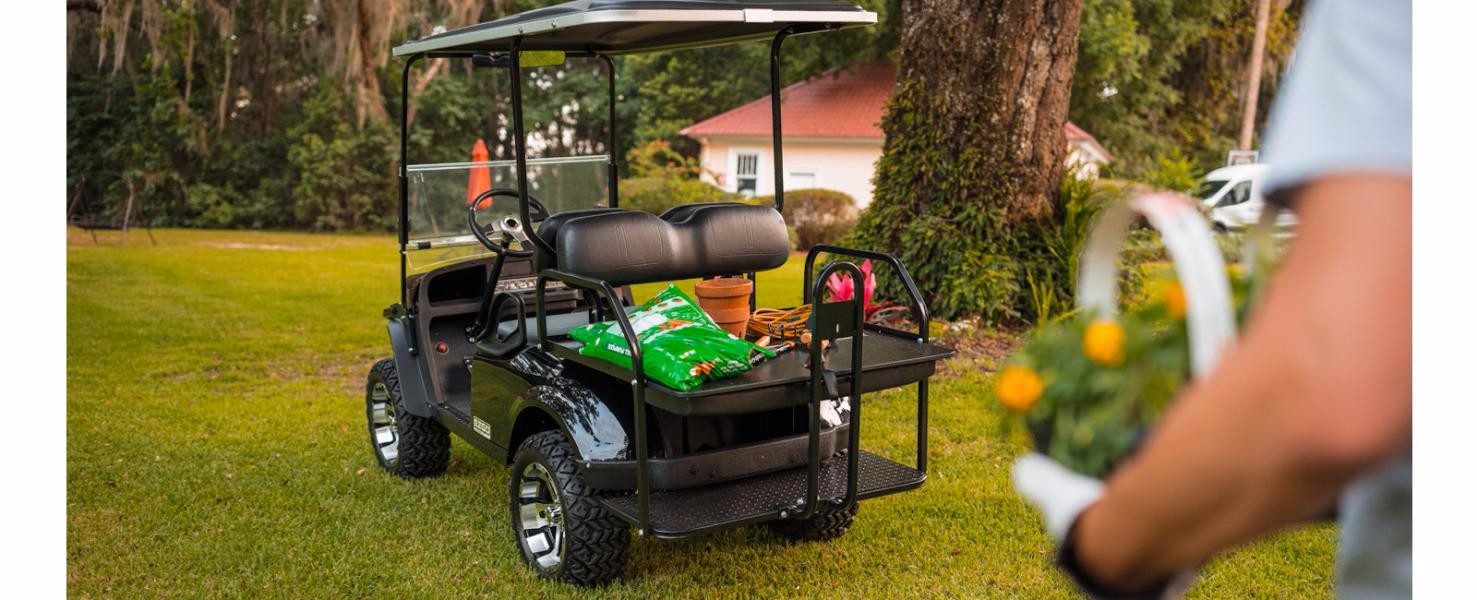

Every hour is an opportunity to get more out of life, and the E-Z-GO Express S4 ensures you’re always living life right. With seating for four and a rear seat that converts to a cargo deck, the Express S4 can take you anywhere. Get behind the wheel of the Express S4 and see what adventures lie ahead.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | PERSONAL TRANSPORT |
| Model | EXPRESS S4 |
| Year | 0 |
| Frame | Welded tubular steel with powder coating |
| Body &Finish | Injection-molded TPO |
| Front Body&Finish | |
| Rear Body & Finish | |
| Frame Chassis | |
| Overall Lenghth | 114.0 in (290 cm) |
| Overall Width | 48.5 in (123 cm) |
| Overall Height | |
| Overall Height(no canopy) | 52.0 in (132 cm) (top of steering wheel) |
| Overall Height(with canopy) | 80.0 in (203 cm) (top of canopy) |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | 37.5 in (95 cm) |
| Rear Wheel Track | 37.5 in (95 cm) |
| Ground Clearance(at differential) | 5.0 in (13 cm) |
| Power Source | 48-volt DC |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | |
| Electric System | 48-volt |
| Batteries(qty/type) | Six, 8-volt deep cycle |
| key or Pedal Start | Pedal |
| Battery Charger | 48 VDC PowerWise QE, 120 VAC, UL/CSA |
| Speed Controller | 250-amp Solid State Controller |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Differential with helical gears |
| Gear Selection | Dash-Mounted Forward-Neutral-Reverse (Integrated into key switch) |
| Rear Axle Ratio | 14.76:1 |
| Seating Capacity | 4-person |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | 844 lb (382 kg) |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | |
| Curb Weight | 1210 lb (549 kg) |
| Vehicle Load Capacity | 800 lb (363 kg) |
| Outside Clearance Circle | 19 ft (5.8 m) |
| Ground Speed (level ground) | 17.5 mph ± 0.5 mph (28.2 kph ± 0.8 kph) |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | |
| Steering | Self-compensating rack and pinion |
| Brakes | |
| Service Brake | Rear wheel mechanical self-adjusting drum brakes |
| Parking Brake | Self-compensating single-point engagement |
| Battery charging time | |
| Running Kilometers |
