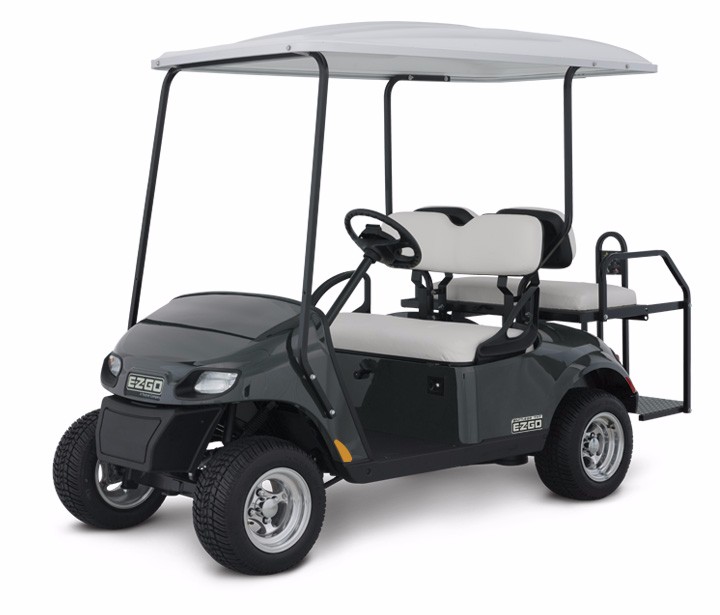

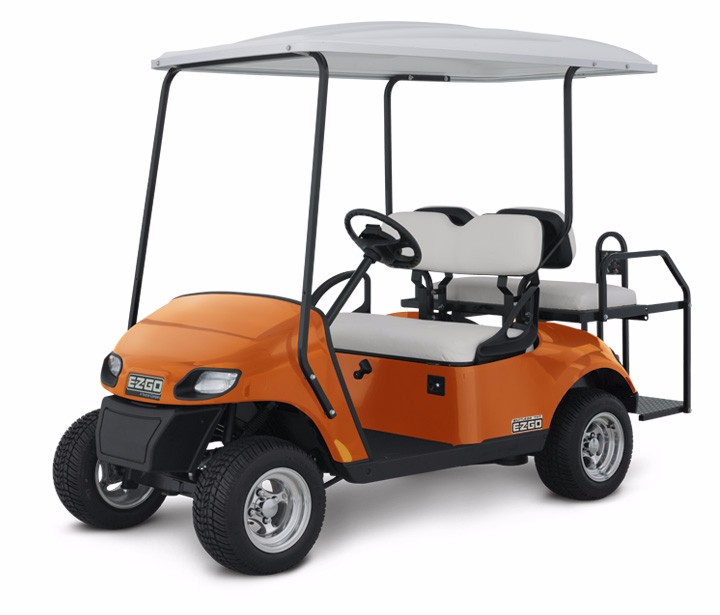

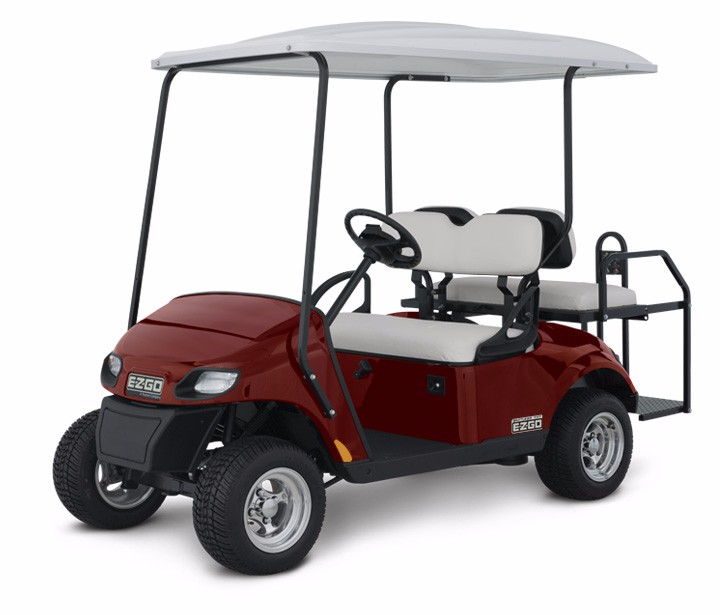

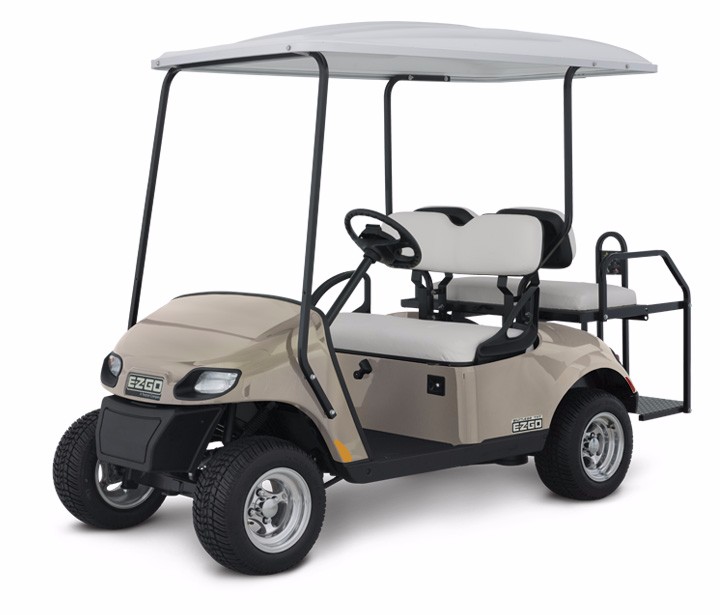

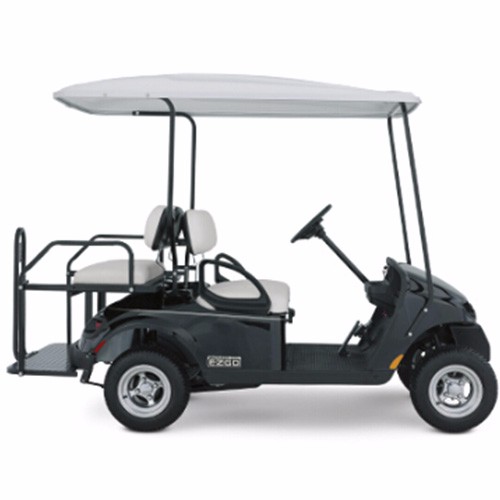

FREEDOM TXT 2+2
Description
FREEDOM TO GO Conquer the neighborhood and experience family cruising in the Freedom TXT 2+2. Enjoy the smooth ride, seating for four, and the abundant storage necessary for concrete adventure.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | PERSONAL TRANSPORT |
| Model | FREEDOM TXT 2+2 |
| Year | 0 |
| Frame | Welded steel with powder-coat protection |
| Body &Finish | Injection Molded TPO |
| Front Body&Finish | |
| Rear Body & Finish | |
| Frame Chassis | |
| Overall Lenghth | 106.0 in (2269 cm) |
| Overall Width | 47.0 in (119 cm) |
| Overall Height | |
| Overall Height(no canopy) | 46.5 in (118 cm) (top of steering wheel) |
| Overall Height(with canopy) | 77.0 in (196 cm) (top of sun canopy) |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | 34.0 in (86 cm) |
| Rear Wheel Track | 38.5 in (98 cm) |
| Ground Clearance(at differential) | 4.5 in (11 cm) |
| Power Source | 48-volt DC |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | |
| Electric System | 48-volt |
| Batteries(qty/type) | Six, 8-volt deep cycle |
| key or Pedal Start | Pedal |
| Battery Charger | 48 VDC 120 VAC, UL & CSA |
| Speed Controller | 250 amp solid state controller |
| Drive Train | Motor shaft direct drive |
| Transaxle | Differential with helical gears |
| Gear Selection | Body mounted forward-neutral-reverse |
| Rear Axle Ratio | 12.44:1 |
| Seating Capacity | 4-person |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | 658 lb (298 kg) |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | |
| Curb Weight | 1036 lb (470 kg) |
| Vehicle Load Capacity | 800 lb (360 kg) |
| Outside Clearance Circle | 19 ft (5.8 m) |
| Ground Speed (level ground) | 10.2-14.8 mph (16.4 kph ± 23.8 kph) |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | |
| Steering | Self-compensating rack and pinion |
| Brakes | |
| Service Brake | Self-compensating, single point engagement |
| Parking Brake | 18 x 8.50-8 (4-ply rated) |
| Battery charging time | |
| Running Kilometers |
