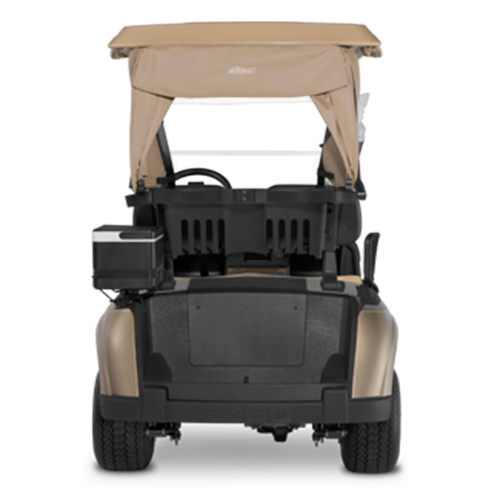

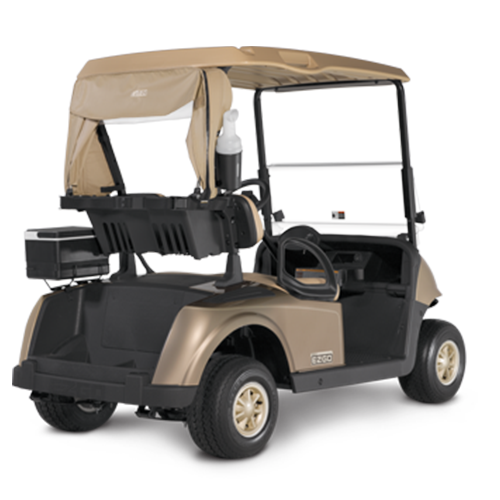

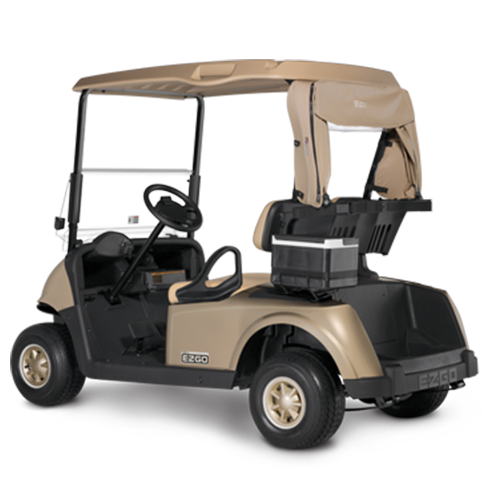

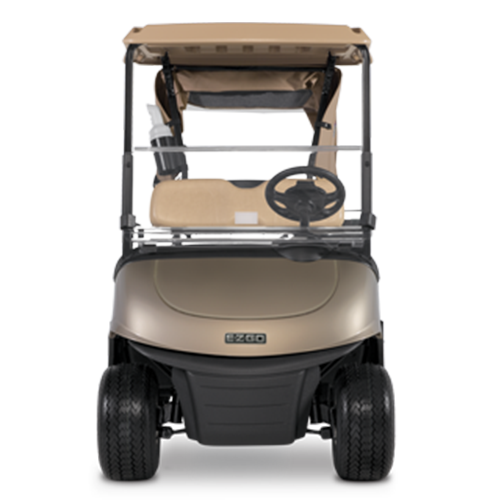

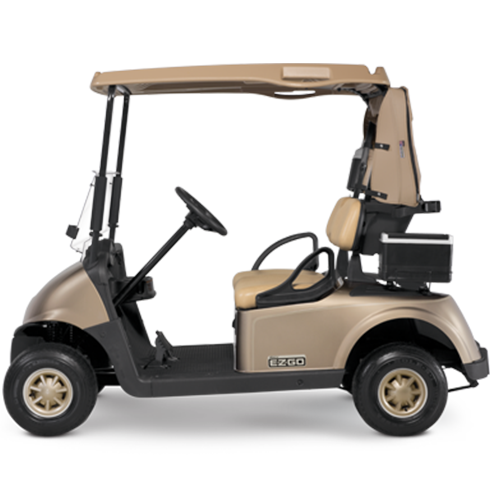

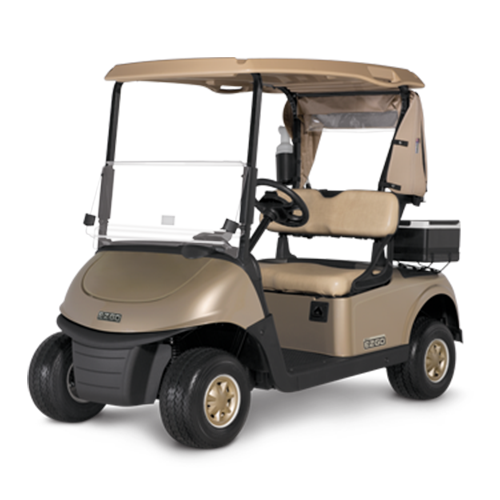

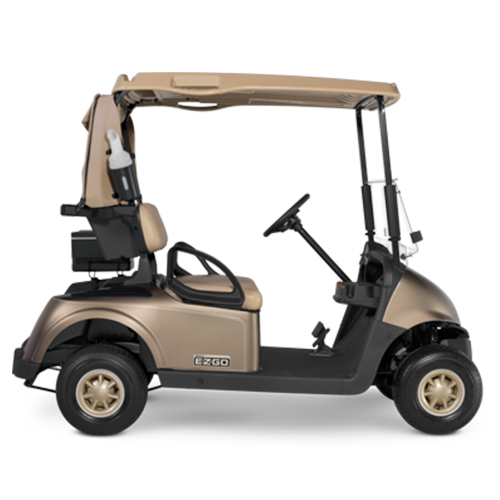

RXV
Description
UNRIVALED INNOVATION THAT’S ALWAYS ON THE MOVE
As the long-standing leader in golf car innovation, AC drivetrain efficiency and IntelliBrake™ technology, the E-Z-GO® RXV® continues to raise the bar on superior golf car performance. No other vehicle delivers reliable, efficient performance and a host of upgraded features like the RXV.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | FLEET GOLF |
| Model | RXV |
| Year | |
| Frame | Welded steel with epoxy coating |
| Body &Finish | |
| Front Body&Finish | |
| Rear Body & Finish | |
| Chassis | |
| Overall Length | Welded steel with epoxy coating |
| Overall Width | 47.0 in (119 cm) |
| Overall Height | |
| Overall Height(no canopy) | 45.7 in (116 cm) (top of steering wheel) |
| Overall Height(with canopy) | 68.5 in (174 cm) (top of sun canopy) |
| Wheel Base | 65.7 in (167 cm) |
| Front Wheel Track | 35.5 in (90 cm) |
| Rear Wheel Track | 38.0 in (97 cm) |
| Ground Clearance(at differential) | 3.3 in (8 cm) |
| Power Source | 4-cycle, 24.5 cu in (401 cc) low emissions |
| Valve Train | |
| Motor Type | |
| Cylinders | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 13.5 hp (10 kW) exceeds SAE J1940 standard |
| Fuel System | |
| Electric System | Starter/generator, solid state regulator |
| Batteries(qty/type) | One, 12-volt maintenance-free |
| Key or Pedal | |
| Battery Charger | |
| Speed Controller | |
| Oil Capacity | |
| Fuel Capacity | 5.85 gallons (23.1 L) |
| Maximum Torque | |
| Seating Capacity | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Vehicle Capacity | |
| Dry Weight Less Batteries | |
| Dry Weight(without batteries) | 697 lb (316 kg) |
| Curb Weight | 747 lb (339 kg) |
| Outside Clearance Circle | |
| Speed - High (Level Ground) | |
| Speed - Low (Level Ground) | |
| Speed Range | |
| Forward Speed (Level Ground) | |
| Reverse Speed (Level Ground) | |
| Ground Speed (level ground) | |
| Turning Radius | |
| Steering | Double-ended rack and pinion |
| Suspension | |
| Service Brake | Rear wheel mechanical, self-adjusting drums |
| Brakes | |
| Brake Stopping Distance | |
| Parking Brake | Self-compensating, single point engagement |
| Seating | |
| Battery Charging Time | |
| Running Kilometer |
