REFRESHER FS4
Description

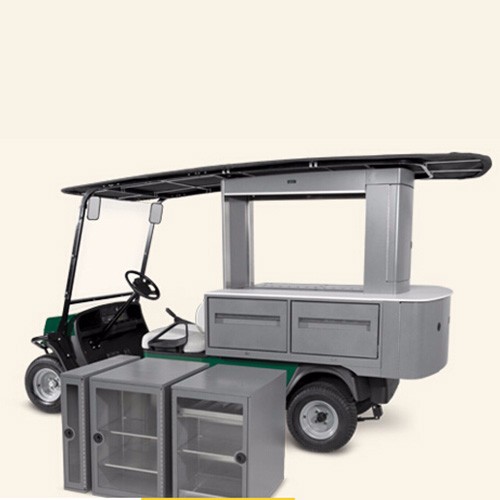

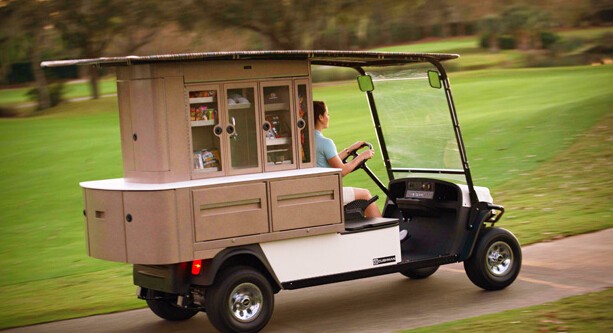

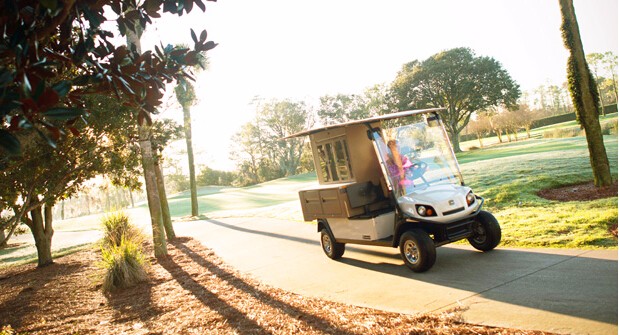

The Refresher® FS4™ with FlexServe™ Technology is the ultimate crowd pleaser for golfers and golf professionals alike. That's because it provides an unprecedented combination of storage and flexibility, allowing you to elevate expectations on and off the course.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | REFRESHER FS4 |
| Year | |
| Frame | Welded Steel with Powder Coat |
| Body &Finish | |
| Front Body&Finish | Injection molded TPO |
| Rear Body & Finish | Steel. Base Coat/Clear Coat |
| Chassis | |
| Overall Length | 147 in (366 cm) |
| Overall Width | 54 in (137 cm) |
| Overall Height | |
| Overall Height(no canopy) | 49 in (124 cm) (Top of Steering Wheel) |
| Overall Height(with canopy) | 80 in (203 cm) |
| Wheel Base | 93.5 in (235 cm) |
| Front Wheel Track | 39.63 in (100 cm) |
| Rear Wheel Track | 39.5 in (100 cm) |
| Ground Clearance(at differential) | 4.5 in (11 cm) |
| Power Source | 4 Cycle 24.5 cu in (401 cc) |
| Valve Train | |
| Motor Type | |
| Cylinders | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 13.5 hp (10.1 KW) Exceeds SAE J1940 Std. |
| Fuel System | |
| Electric System | Starter/Generator. Solid State Regulator |
| Batteries(qty/type) | One, 12V Maintenance Free |
| Key or Pedal | Pedal |
| Battery Charger | |
| Speed Controller | |
| Oil Capacity | |
| Fuel Capacity | 6.2 Gallon (23.5 L) Tank |
| Maximum Torque | |
| Seating Capacity | 1 Person, 2 Person Optional |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Vehicle Capacity | |
| Dry Weight Less Batteries | |
| Dry Weight(without batteries) | 1470 lb (661 kg) |
| Curb Weight | 1508 lb (684 kg) |
| Outside Clearance Circle | Left 26.8 ft (8.1 m), Right 25.2 ft (7.6 m) |
| Speed - High (Level Ground) | |
| Speed - Low (Level Ground) | |
| Speed Range | |
| Forward Speed (Level Ground) | |
| Reverse Speed (Level Ground) | |
| Ground Speed (level ground) | |
| Turning Radius | |
| Steering | Self-Compensating Reduction Rack and Pinion |
| Suspension | |
| Service Brake | 4 Wheel Hydraulic, Front Disc/Rear Drum |
| Brakes | |
| Brake Stopping Distance | |
| Parking Brake | Mechanical Hand Brake |
| Seating | |
| Battery Charging Time | |
| Running Kilometer |
