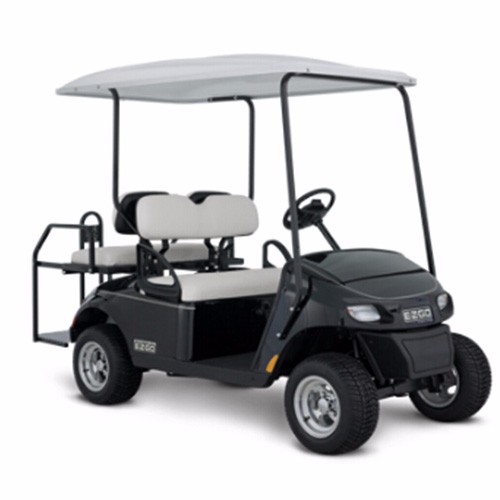

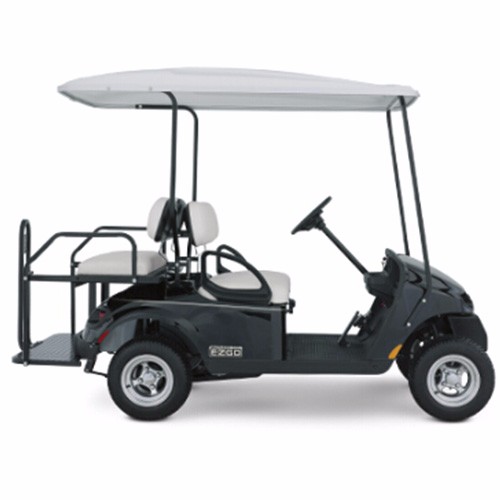

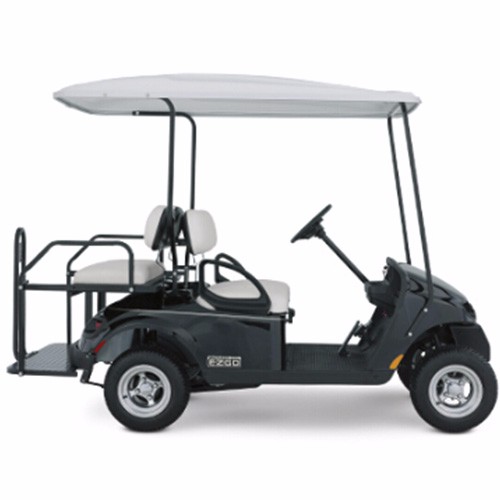

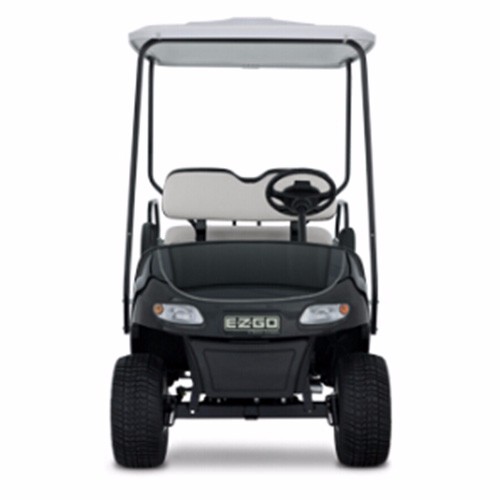

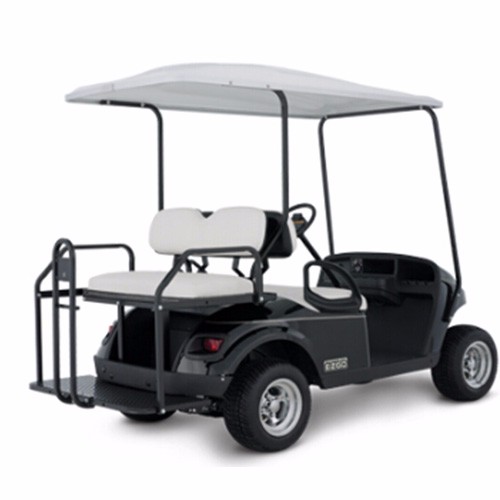

FREEDOM TXT
Description
RELIABILITY THAT TAKES YOU FARTHER
Efficient and equipped to move, the E-Z-GO® Freedom® TXT® is designed for life on and off the course. Ideal for gated and golf communities, it features all the functionality and amenities you need for short jaunts. No matter where you’re headed, you’ll have the power and style to get there with ease.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | FLEET GOLF |
| Model | FREEDOM TXT |
| Year | |
| Frame | Welded Steel with Powder-Coat Protection |
| Body &Finish | Injection Molded TPO |
| Front Body&Finish | |
| Rear Body & Finish | |
| Chassis | |
| Overall Length | 93.0 in (236 cm) |
| Overall Width | 47.0 in (119 cm) |
| Overall Height | |
| Overall Height(no canopy) | 47.0 in (119 cm) (top of steering wheel) |
| Overall Height(with canopy) | 68.5 in (174 cm) (top of sun canopy) |
| Wheel Base | 66.0 in (168 cm) |
| Front Wheel Track | 34.5 in (88 cm) |
| Rear Wheel Track | 38.5 in (98 cm) |
| Ground Clearance(at differential) | 3.0 in (8 cm) |
| Power Source | 4-cycle, 24.5 cu in (401 cc) low emissions |
| Valve Train | |
| Motor Type | |
| Cylinders | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 13.5 hp (10.1 kW) exceeds SAE J1940 standard |
| Fuel System | |
| Electric System | Starter/generator, solid state regulator |
| Batteries(qty/type) | One, 12-volt maintenance-free |
| Key or Pedal | Pedal |
| Battery Charger | |
| Speed Controller | |
| Oil Capacity | |
| Fuel Capacity | 5.3 Gallon (20 L) |
| Maximum Torque | |
| Seating Capacity | 2-person |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Vehicle Capacity | |
| Dry Weight Less Batteries | |
| Dry Weight(without batteries) | 706 lb (320 kg) |
| Curb Weight | |
| Outside Clearance Circle | 19.0 ft (5.8 m) |
| Speed - High (Level Ground) | |
| Speed - Low (Level Ground) | |
| Speed Range | |
| Forward Speed (Level Ground) | |
| Reverse Speed (Level Ground) | |
| Ground Speed (level ground) | 19.0 mph ± 0.5 mph (30.6 kph ± 0.8 kph) |
| Turning Radius | |
| Steering | Self-compensating rack and pinion |
| Suspension | |
| Service Brake | Rear wheel mechanical, self-adjusting drums |
| Brakes | |
| Brake Stopping Distance | |
| Parking Brake | Self-compensating, single point engagement |
| Seating | |
| Battery Charging Time | |
| Running Kilometer |
