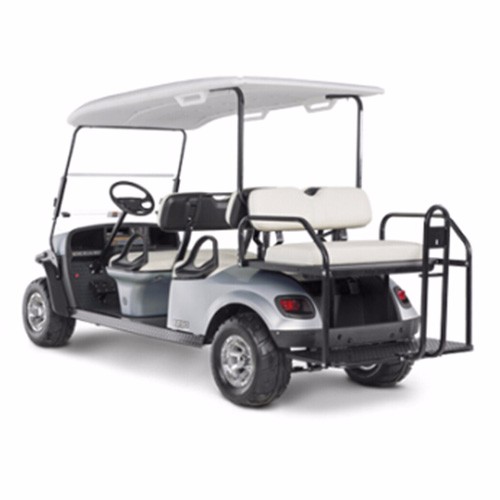

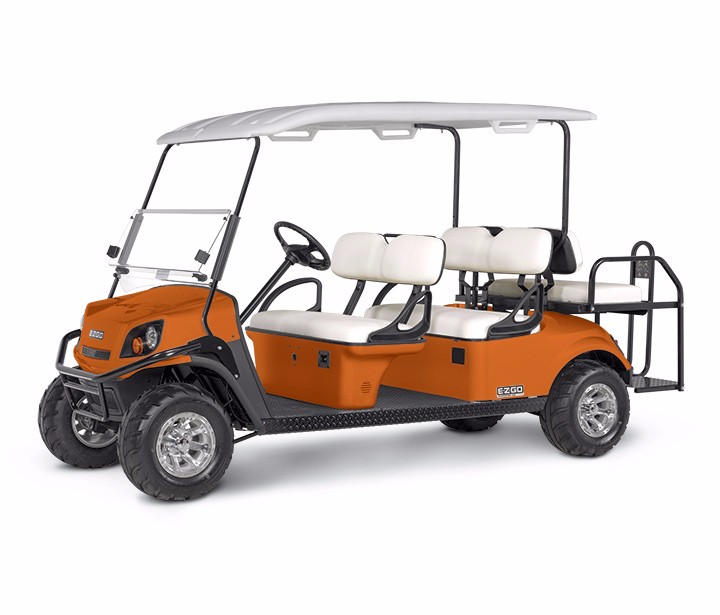

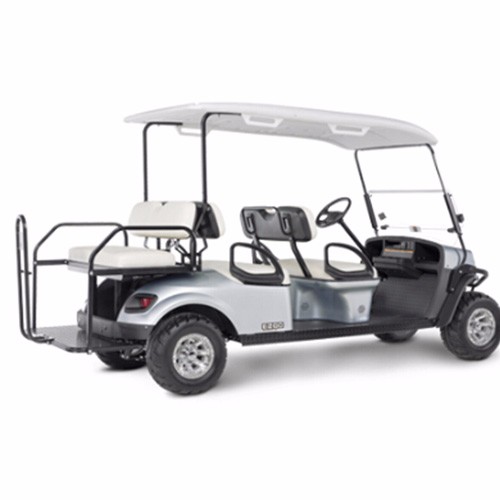

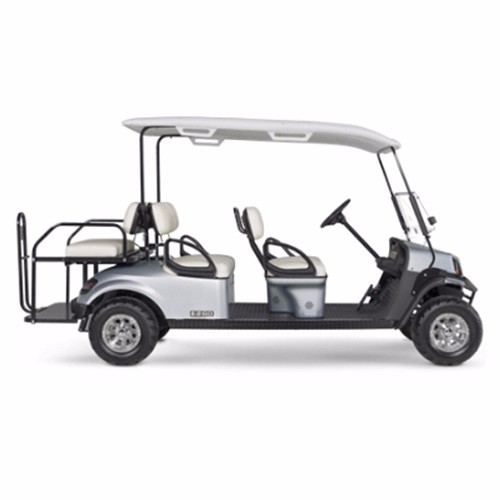

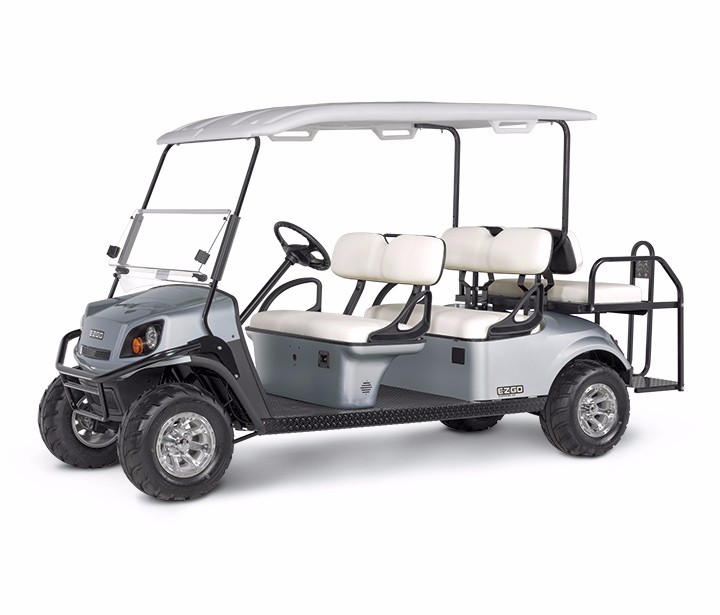

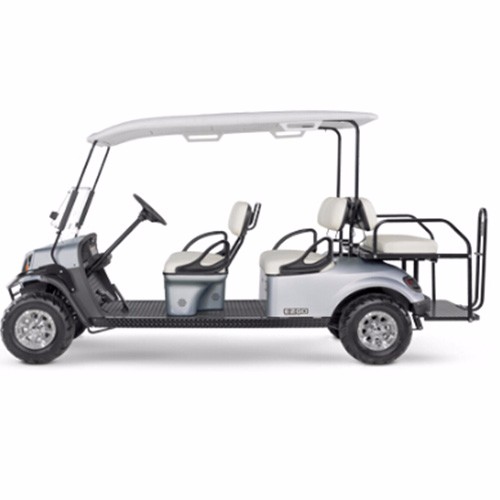

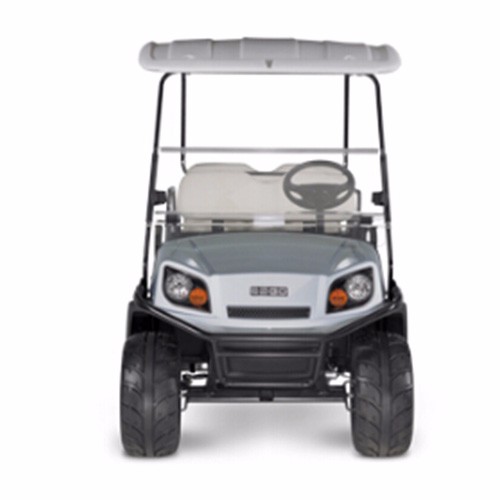

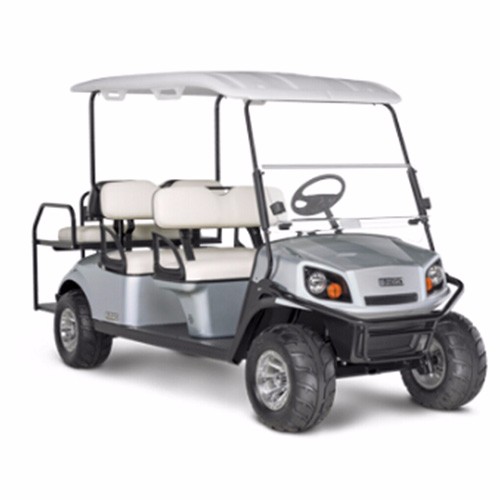

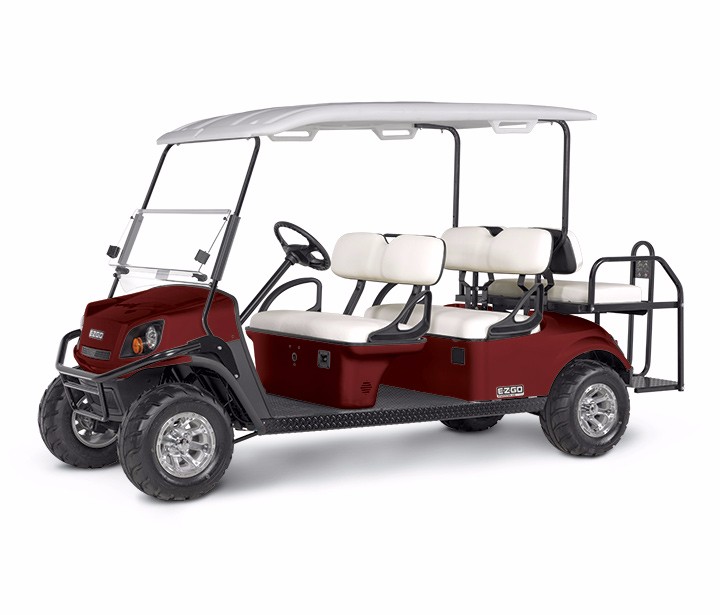

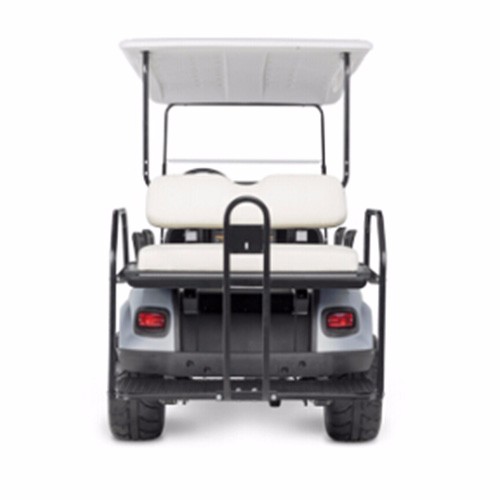

EXPRESS S6
Description
EXPLORE A NEW PATH.
Every day is an opportunity to experience something new. The Express S6 is built to help you enjoy your days in style and keep you ready for whatever lies ahead. So grab your friends and family and hop into the Express S6 to see where the day can take you.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | PERSONAL TRANSPORT |
| Model | EXPRESS S6 |
| Year | 0 |
| Frame | Welded tubular steel with powder coating |
| Body &Finish | Injection-molded TPO |
| Front Body&Finish | |
| Rear Body & Finish | Injection-molded TPO |
| Frame Chassis | |
| Overall Lenghth | 141.5 in (359 cm) |
| Overall Width | 48.5 in (123 cm) |
| Overall Height | |
| Overall Height(no canopy) | 49.5 in (126 cm) (top of steering wheel) |
| Overall Height(with canopy) | 74.5 in (189 cm) (top of canopy) |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | 38.5 in (98 cm) |
| Rear Wheel Track | 39.0 in (99 cm) |
| Ground Clearance(at differential) | 5.5 in (14 cm) |
| Power Source | 48-volt DC |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | |
| Electric System | 48-volt |
| Batteries(qty/type) | Eight, 6-volt deep cycle |
| key or Pedal Start | |
| Battery Charger | 48 VDC, 120 VAC, UL/CSA |
| Speed Controller | 400-amp Precision Drive System (PDS) |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Differential with helical gears |
| Gear Selection | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 14.7:1 |
| Seating Capacity | 4/6-person |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | 921 lb (418 kg) |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | |
| Curb Weight | 1417 lb (643 kg) |
| Vehicle Load Capacity | 1200 lb (544 kg) |
| Outside Clearance Circle | 35.6 ft (10.9 m) |
| Ground Speed (level ground) | 16.0 mph ± 0.5 mph (25.7 kph) |
| Forward Speed (level ground) | 6.9 mph (11.1 kph) |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | |
| Steering | Self-compensating reduction rack and pinion |
| Brakes | |
| Service Brake | Rear wheel mechanical self-adjusting drum brakes |
| Parking Brake | Self-compensating, single-point engagement |
| Battery charging time | |
| Running Kilometers |
