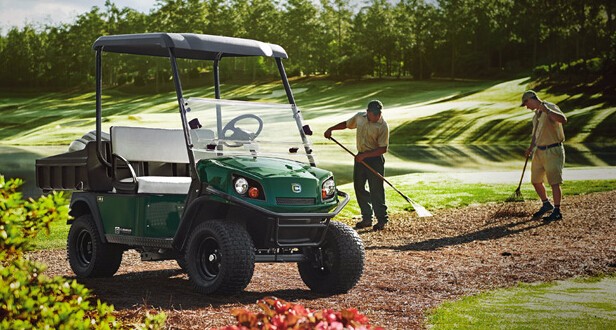

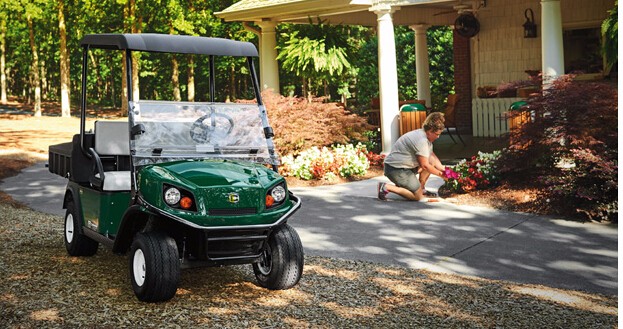

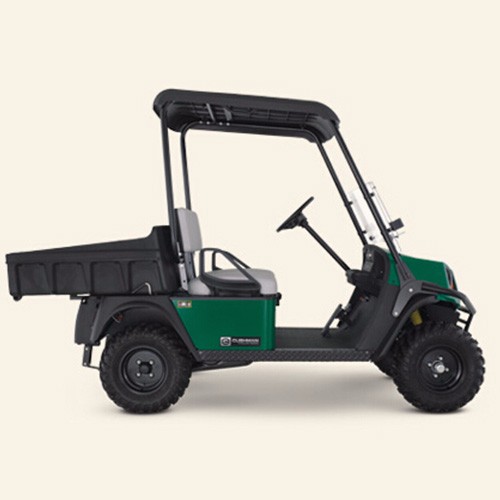

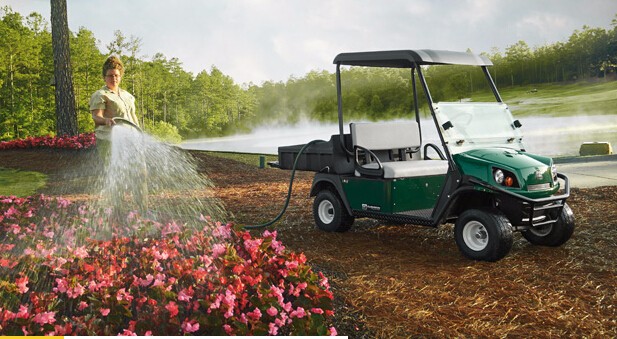

HAULER® 800X Gas
Description
The most respected workers have a reputation for getting the job done day in and day out – like the dependable Hauler® 800. Available with a gas or electric powertrain, it delivers the practical power you need to knock down your to-do list.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | HAULER® 800X Gas |
| Year | |
| Frame | Welded Steel with Powder Coat |
| Body &Finish | |
| Front Body&Finish | Injection Molded TPO |
| Rear Body & Finish | Steel. Base Coat/Clear Coat |
| Chassis | |
| Overall Length | 103.5 in (261 cm) |
| Overall Width | 46.5 in (118 cm) |
| Overall Height | |
| Overall Height(no canopy) | 49.0 in (124 cm) (Top of steering wheel) |
| Overall Height(with canopy) | 79.5 in (186 cm) |
| Wheel Base | 65.5 in (166 cm) |
| Front Wheel Track | 37.0 in (94 cm) |
| Rear Wheel Track | 38.0 in (97 cm) |
| Ground Clearance(at differential) | 4.3 in (15 cm) |
| Power Source | 4 Cycle 24.5 cu in (401 cc) |
| Valve Train | |
| Motor Type | |
| Cylinders | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 13.5 hp (9.7 kW) Exceeds SAE J1940 Std. |
| Fuel System | |
| Electric System | Starter/Generator. Solid State Regulator |
| Batteries(qty/type) | One, 12 Volt Maintenance Free |
| Key or Pedal | Pedal |
| Battery Charger | |
| Speed Controller | |
| Oil Capacity | |
| Fuel Capacity | 6.0 Gallon (22.7 L) tank |
| Maximum Torque | |
| Seating Capacity | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Vehicle Capacity | |
| Dry Weight Less Batteries | |
| Dry Weight(without batteries) | 810 lb (355 kg) |
| Curb Weight | 850 lb (385 kg) |
| Outside Clearance Circle | |
| Speed - High (Level Ground) | |
| Speed - Low (Level Ground) | |
| Speed Range | |
| Forward Speed (Level Ground) | |
| Reverse Speed (Level Ground) | |
| Ground Speed (level ground) | |
| Turning Radius | |
| Steering | Self-Compensating Rack and Pinion |
| Suspension | |
| Service Brake | Rear Wheel Mechanical Self-Adjusting Drum |
| Brakes | |
| Brake Stopping Distance | |
| Parking Brake | Self-Compensating, Single Point Engagement |
| Seating | |
| Battery Charging Time | |
| Running Kilometer |
