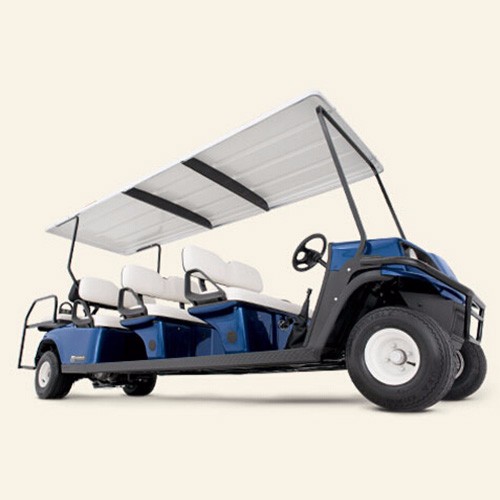

SHUTTLE 8
Description
Designed for safety and comfort, the Shuttle 8™ personnel transport vehicle delivers all the space you need. Features like a large canopy, ergonomically-designed seating, and dependable powertrain options keep guests and workers happy.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | SHUTTLE 8 |
| Year | |
| Frame | Welded Steel. DuraShield Powder Coat |
| Body &Finish | |
| Front Body&Finish | Injection molded TPO |
| Rear Body & Finish | Fiberglass & Gelcoat |
| Chassis | |
| Overall Length | 167.5 in (425.5 cm) |
| Overall Width | 49.5 in (125.7 cm) |
| Overall Height | |
| Overall Height(no canopy) | 45.5 in (115.6 cm) (Top of steering wheel) |
| Overall Height(with canopy) | 76.0 in (193 cm) |
| Wheel Base | 123.4 in (313.7 cm) |
| Front Wheel Track | 36.0 in (91.4 cm) |
| Rear Wheel Track | 38.0 in (97 cm) |
| Ground Clearance(at differential) | 3.0 in (7.6 cm) |
| Power Source | 4 Cycle 24.5 cu in (401 cc). Low Emission |
| Valve Train | |
| Motor Type | |
| Cylinders | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 13.5 hp (9.7 kW) Exceeds SAE J1940 Standard |
| Fuel System | |
| Electric System | Starter/Generator, Solid-State Regulator |
| Batteries(qty/type) | One, 12-Volt Maintenance Free |
| Key or Pedal | |
| Battery Charger | |
| Speed Controller | |
| Oil Capacity | |
| Fuel Capacity | 5.8 Gallon (22.0L) tank |
| Maximum Torque | |
| Seating Capacity | 8 Person |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Vehicle Capacity | |
| Dry Weight Less Batteries | |
| Dry Weight(without batteries) | 1225 lb (557 kg) |
| Curb Weight | 1265 lb (575 kg) |
| Outside Clearance Circle | 33.0 ft (10.1 m) |
| Speed - High (Level Ground) | |
| Speed - Low (Level Ground) | |
| Speed Range | |
| Forward Speed (Level Ground) | |
| Reverse Speed (Level Ground) | |
| Ground Speed (level ground) | 16 mph ± 0.5 (26 kph ± 0.8 kph) |
| Turning Radius | |
| Steering | Self-Compensating Reduction Rack and Pinion |
| Suspension | |
| Service Brake | 4 Wheel Hydraulic Brakes, Front Disk, Rear Drum |
| Brakes | |
| Brake Stopping Distance | |
| Parking Brake | Floor Mounted Man. Park Brake with Warning Buzzer |
| Seating | |
| Battery Charging Time | |
| Running Kilometer |
