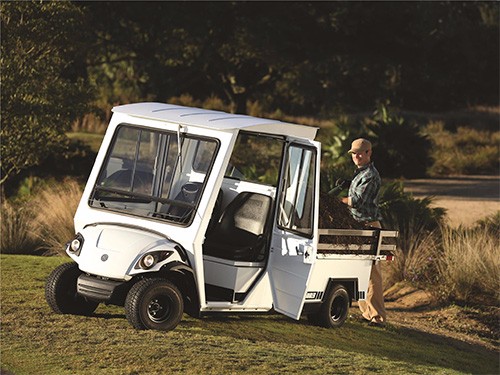

ADVENTURER TWO
Description
When the task at hand calls for more muscle, this big brother of the Hauler is exactly what you need. It’s outfitted with an 800-pound payload capacity, beefed-up transaxle, four wheel drum brakes, and a reputation for being able to take on pretty much anything. Whether you’re moving supplies out to the back nine, or just want to show off a bit, this crew member is the boss.
Key Parameters
Detailed Parameters
| Official Web | www.yamahagolfcar.com |
| Maker | YAMAHA |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | ADVENTURER TWO |
| Year | 0 |
| Frame | HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame mated to a polypropylene structural floor. Frame is protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostat |
| Body &Finish | Custom-formulated thermoplastic olefin and the front is painted with a two-part top coat of high-luster automotive-grade polyurethane. |
| Front Body&Finish | |
| Rear Body & Finish | |
| Frame Chassis | |
| Overall Lenghth | 2922 mm (115 in) |
| Overall Width | 1243 mm (48.9 in) |
| Overall Height | |
| Overall Height(no canopy) | |
| Overall Height(with canopy) | |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | 990 mm (39 in) |
| Rear Wheel Track | 980 mm (38.6 in) |
| Ground Clearance(at differential) | Electric: 109 mm (4.2 in) Gas: 115 mm (4.5 in) |
| Power Source | |
| RPMs | |
| Shunt Wound | |
| Output Rating | 5 kW |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | |
| Electric System | |
| Batteries(qty/type) | 6V x 8 |
| key or Pedal Start | |
| Battery Charger | |
| Speed Controller | |
| Drive Train | |
| Transaxle | |
| Gear Selection | |
| Rear Axle Ratio | |
| Seating Capacity | 2 persons |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | |
| Dry Weight(With Batteries) | Electric: 376 kg (827.8 lbs) w/o |
| Curb Weight>(w/ Batteries) | |
| Curb Weight | Electric: 376 kg (827.8 lbs) w/o |
| Vehicle Load Capacity | |
| Outside Clearance Circle | |
| Ground Speed (level ground) | |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | 31.4 |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | 3.3m |
| Towing Capacity | Rolling Weight: 1000 lbs Towing Weight: 150 lbs |
| Steering | Self-compensating double reduction helical rack-and-pinion, permanently lubricated with sealed bearings and greaseless tie-rod ends |
| Brakes | |
| Service Brake | |
| Parking Brake | |
| Battery charging time | |
| Running Kilometers |
