CARRYALL 510 LSV
Description

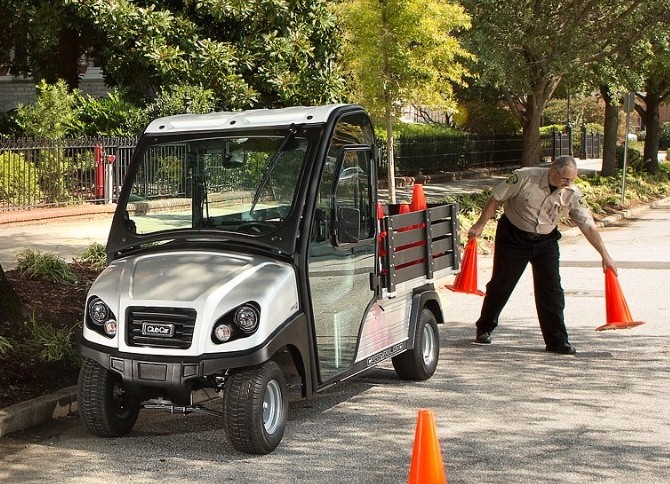

Get the performance of a full-size truck combined with the economy and nimble handling only a Club Car delivers. The Carryall 510 LSV adapts to any situation, with street-legal power and one of the shortest turning radiuses in its class – making this the perfect vehicle for narrow city streets and campus-like environments.
With an all-electric power train, the Carryall 510 LSV needs no fuel and has zero emissions – saving you money – but still provides speeds of 25 mph and up to 30 miles on a single charge. It’s tough and reliable, and an ideal solution for those who need the capabilities of a truck and the versatility to navigate tight spaces.
Key Parameters
Detailed Parameters
| Official Web | www.clubcar.com |
| Maker | CLUB CAR |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | CARRYALL 510 LSV |
| Year | 0 |
| Frame | |
| Body &Finish | |
| Front Body&Finish | ArmorFlex® with automotive paint/clear coat |
| Rear Body & Finish | Rust-proof aluminum |
| Frame Chassis | Aluminum I-beam |
| Overall Lenghth | 118 in (299.7cm) |
| Overall Width | 50.3 in (127.7cm) |
| Overall Height | 74.3 in (188.72 cm) |
| Overall Height(no canopy) | |
| Overall Height(with canopy) | |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | |
| Rear Wheel Track | |
| Ground Clearance(at differential) | 5.6 in (14.2 cm) |
| Power Source | Electric |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 4.4 hp (3.3 kW);Peak 16 hp (11.7 kW) |
| Electric System | 48-volt DC |
| Batteries(qty/type) | |
| key or Pedal Start | Pedal |
| Battery Charger | On-board DeltaQ QuiQ(1KW High Frequency) |
| Speed Controller | |
| Drive Train | |
| Transaxle | |
| Gear Selection | |
| Rear Axle Ratio | |
| Seating Capacity | 2 Persons |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | 950 lb (430.0 kg) |
| Dry Weight(without batteries) | |
| Dry Weight(With Batteries) | 1656 lb (751.1 kg) |
| Curb Weight>(w/ Batteries) | |
| Curb Weight | |
| Vehicle Load Capacity | |
| Outside Clearance Circle | 258.5 in (652.7 cm) |
| Ground Speed (level ground) | |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | 25 mph |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | |
| Steering | Self-adjusting rack and pinion |
| Brakes | |
| Service Brake | |
| Parking Brake | Hand-operated |
| Battery charging time | |
| Running Kilometers |
