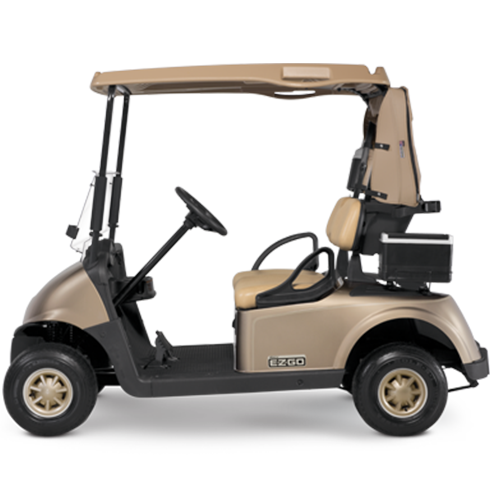

RXV
Description
UNRIVALED INNOVATION THAT’S ALWAYS ON THE MOVE
As the long-standing leader in golf car innovation, AC drivetrain efficiency and IntelliBrake™ technology, the E-Z-GO® RXV® continues to raise the bar on superior golf car performance. No other vehicle delivers reliable, efficient performance and a host of upgraded features like the RXV.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | FLEET GOLF |
| Model | RXV |
| Year | 0 |
| Frame | Welded steel with epoxy coating |
| Body &Finish | TPO |
| Front Body&Finish | |
| Rear Body & Finish | |
| Frame Chassis | |
| Overall Lenghth | 94.5 in (240 cm) |
| Overall Width | 47 in (119 cm) |
| Overall Height | |
| Overall Height(no canopy) | 45.7 in (116 cm) (top of steering wheel) |
| Overall Height(with canopy) | 68.5 in (174 cm) (top of sun canopy) |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | 35.5 in (90 cm) |
| Rear Wheel Track | 38 in (97 cm) |
| Ground Clearance(at differential) | 4.5 in (11 cm) |
| Power Source | 48-volt DC |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 4.4 hp (3.3 kW) continuous |
| Electric System | 48-volt |
| Batteries(qty/type) | Four, 12-volt deep cycle |
| key or Pedal Start | |
| Battery Charger | 48 VDC PowerWise QE high frequency, UL and CSA |
| Speed Controller | 230-amp AC controller |
| Drive Train | Motor shaft direct drive |
| Transaxle | Limited slip differential |
| Gear Selection | Dash-mounted forward-neutral-reverse (Integrated into key switch) |
| Rear Axle Ratio | 16.99:1 |
| Seating Capacity | 2-person |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | 611 lb (278 kg) |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | 911 lb (414 kg) |
| Curb Weight | |
| Vehicle Load Capacity | 800 lb (360 kg) |
| Outside Clearance Circle | 19.2 ft (5.8 m) |
| Ground Speed (level ground) | 8-15 mph (13-24 kph) programmable |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | 3 E-Z-GO golf cars with approved tow bars |
| Steering | Double-ended rack and pinion |
| Brakes | |
| Service Brake | Induction motor |
| Parking Brake | Automatic electro-magnetic |
| Battery charging time | |
| Running Kilometers |
