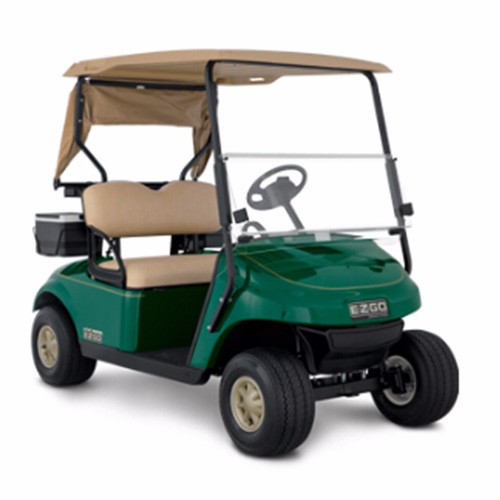

TXT
Description
REFINED TO A TEE

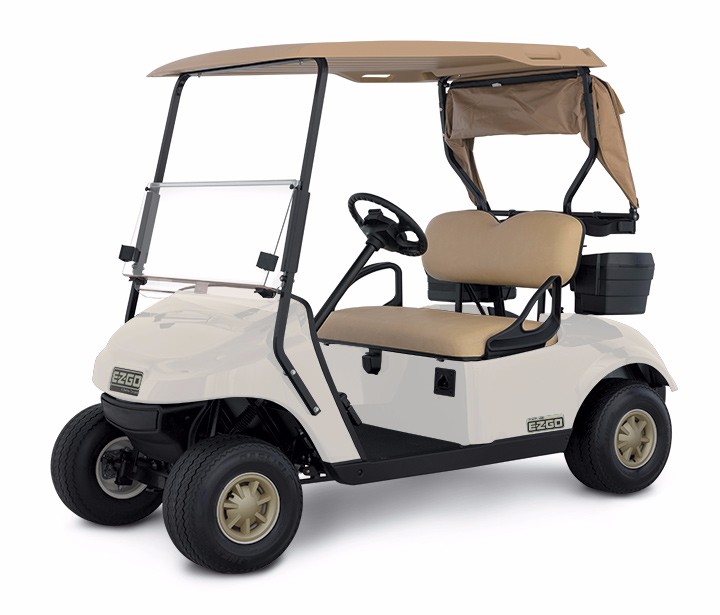

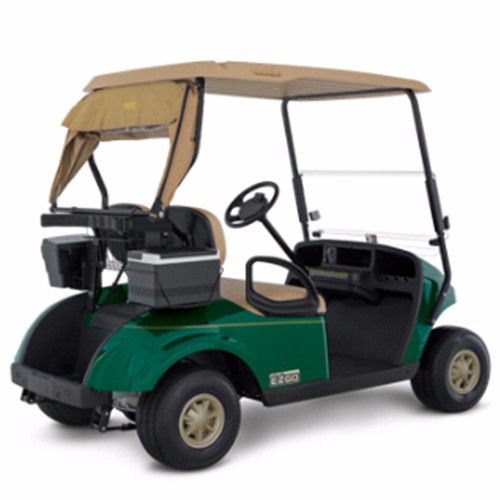

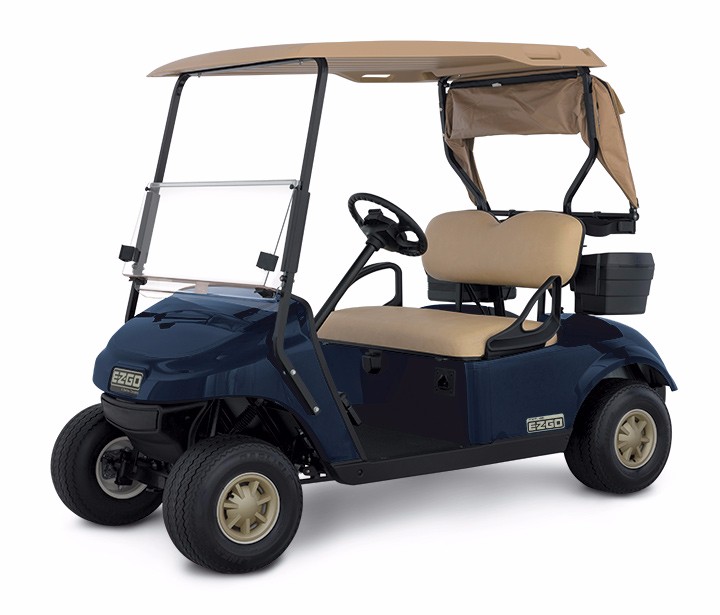

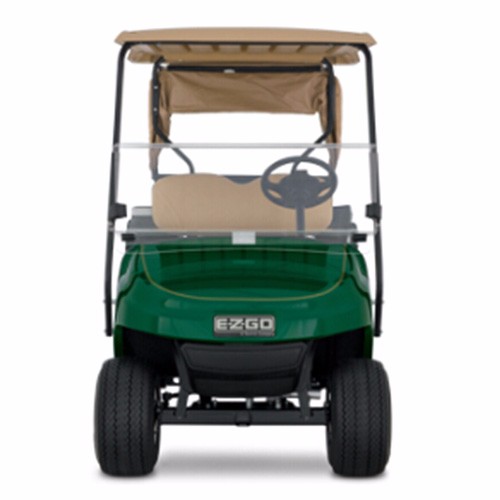

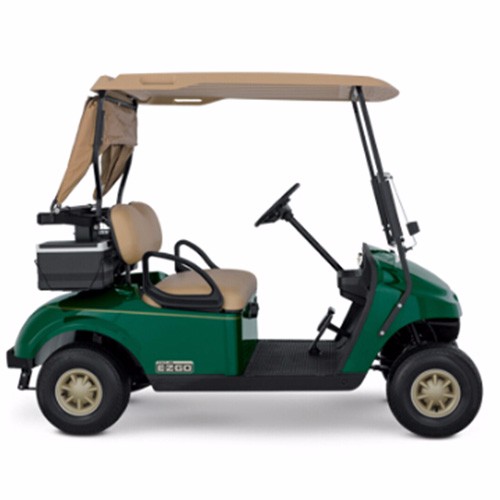

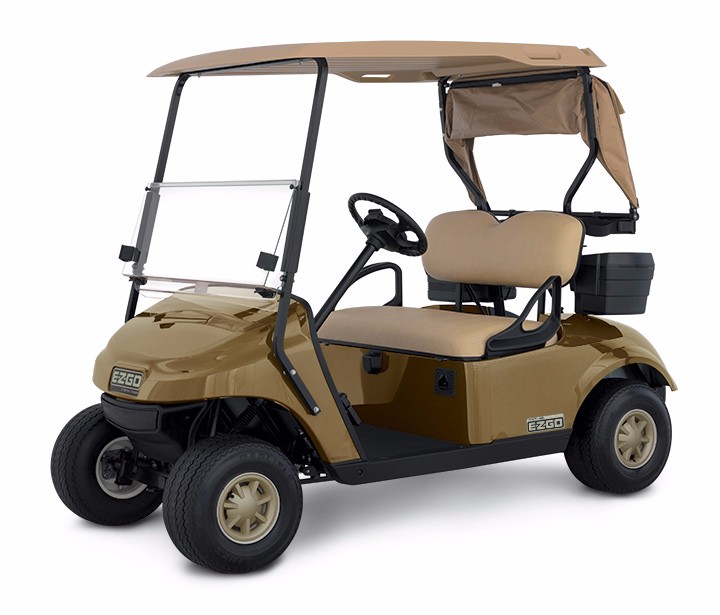

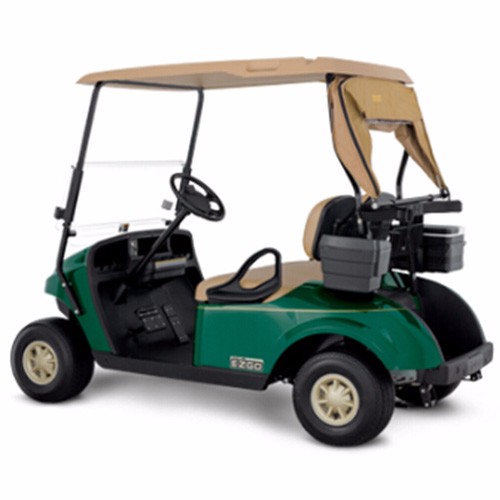

The E-Z-GO® TXT® golf car combines proven reliability with the industry’s latest innovations to deliver a consistently smoother ride and greater energy efficiency. Featuring a 48-volt electric drivetrain and TruCourse™ Technology, it offers the perfect balance of performance and efficiency to your course.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | FLEET GOLF |
| Model | TXT |
| Year | 0 |
| Frame | Welded steel with powder coating |
| Body &Finish | |
| Front Body&Finish | Injection-molded TPO |
| Rear Body & Finish | Injection-molded TPO |
| Frame Chassis | |
| Overall Lenghth | 93.0 in (236 cm) |
| Overall Width | 47.0 in (119 cm) |
| Overall Height | |
| Overall Height(no canopy) | 46.5 in (118 cm) (top of steering wheel) |
| Overall Height(with canopy) | 67.5 in (171 cm) (top of sun canopy) |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | 34.0 in (86 cm) |
| Rear Wheel Track | 38.5 in (97 cm) |
| Ground Clearance(at differential) | 4.5 in (11 cm) |
| Power Source | 48-volt DC |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 3.0 hp (2.2 kW) Continuous |
| Electric System | 48-volt |
| Batteries(qty/type) | Six, 8-volt deep cycle |
| key or Pedal Start | |
| Battery Charger | 48 VDC PowerWise™ QE, 120 VAC, UL & CSA |
| Speed Controller | 250-amp solid-state controller |
| Drive Train | Motor shaft direct drive |
| Transaxle | Differential with helical gears |
| Gear Selection | Dash-mounted forward-neutral-reverse (Integrated into key switch) |
| Rear Axle Ratio | 12.44:1 |
| Seating Capacity | 2-person |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | 557 lb (253 kg) |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | |
| Curb Weight | 935 lb (424 kg) |
| Vehicle Load Capacity | 800 lb (363 kg) |
| Outside Clearance Circle | 19.0 ft (5.8 m) |
| Ground Speed (level ground) | 10.2-14.8 mph (16.4-23.8 kph) |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | 3 E-Z-GO golf cars with approved permanent tow bar |
| Steering | Self-compensating rack and pinion |
| Brakes | |
| Service Brake | Rear wheel mechanical self-adjusting drum |
| Parking Brake | Self-compensating single-point engagement |
| Battery charging time | |
| Running Kilometers |
