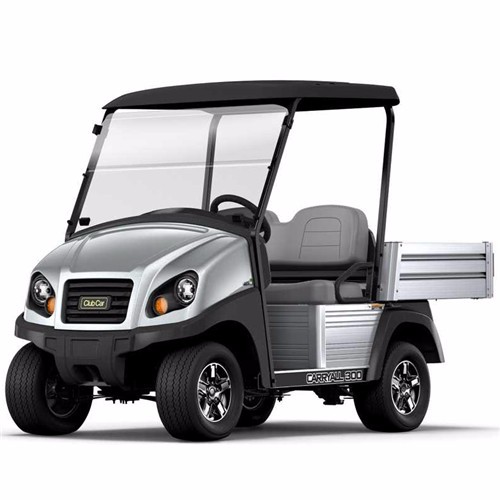

CARRYALL 300
Description
Strength and durability are the hallmarks of the Carryall 300, the most economical and dependable utility vehicle in its class. It features a rustproof aircraft grade aluminum frame, chassis and cargo box, powered by a Subaru 404cc gasoline engine or 48-volt Excel electric powertrain.
The rack and pinion steering make the Carryall 300 easy to handle even with an 800-pound total vehicle capacity. From its sturdy front bumper to its flatbed cargo box with tailgate or stake-side bed options, it’s the perfect solution for your light-duty industrial and commercial jobs.
Key Parameters
Detailed Parameters
| Official Web | www.clubcar.com |
| Maker | CLUB CAR |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | CARRYALL 300 |
| Year | 0 |
| Frame | |
| Body &Finish | |
| Front Body&Finish | ArmorFlex with automotive paint/clearcoat |
| Rear Body & Finish | Aluminum |
| Frame Chassis | |
| Overall Lenghth | 110.1 in (279.6 cm) |
| Overall Width | |
| Overall Height | 47.1 in (119.6 cm) |
| Overall Height(no canopy) | |
| Overall Height(with canopy) | |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | |
| Rear Wheel Track | |
| Ground Clearance(at differential) | 5.6 in (14.2 cm) |
| Power Source | |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 3.3 hp (2.4 kW) rated;Peak 13 hp (9.6 kW) |
| Electric System | |
| Batteries(qty/type) | Six 8-volt Flooded Lead Acid |
| key or Pedal Start | |
| Battery Charger | ERIC (650 W High Frequency) |
| Speed Controller | |
| Drive Train | |
| Transaxle | |
| Gear Selection | Forward /Neutral/Reverse |
| Rear Axle Ratio | 12.32:1 |
| Seating Capacity | |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | 800 lb (362.8 kg) |
| Dry Weight(without batteries) | |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | 1105 lb (501.2 kg) |
| Curb Weight | |
| Vehicle Load Capacity | |
| Outside Clearance Circle | 230.5 in (585.4 cm) |
| Ground Speed (level ground) | |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | 34.5 ft-lb (46.7 N-m) rated@ 1980 rpm |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | 108.7 in (276.2 cm) |
| Towing Capacity | |
| Steering | Self-adjusting Rack and Pinion |
| Brakes | |
| Service Brake | |
| Parking Brake | Foot Operated, Multi-lock |
| Battery charging time | |
| Running Kilometers |
