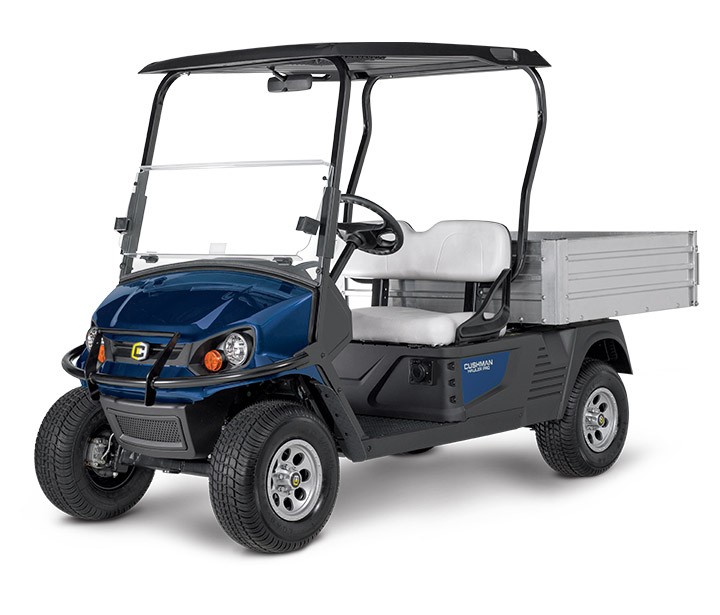

HAULER® PRO
Description
UTILITY
Maintaining a pristine course isn't always a pretty job. And when it's time to do the heavy hauling, these vehicles are ready to work. From big beds and payloads to features that help you get more done, Cushman® utility vehicles were made to get your course ready for play.
Key Parameters
Detailed Parameters
| Official Web | www.ezgo.com |
| Maker | EZGO |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | HAULER® PRO |
| Year | 0 |
| Frame | Welded Steel. Durashield™ Powder Coat |
| Body &Finish | |
| Front Body&Finish | Injection Molded TPO |
| Rear Body & Finish | Injection Molded TPO |
| Frame Chassis | |
| Overall Lenghth | 115 in (292 cm) |
| Overall Width | 49.4 in (126 cm) |
| Overall Height | |
| Overall Height(no canopy) | 47.3 in (121 cm) (Top of steering wheel) |
| Overall Height(with canopy) | |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | 35.0 in (89 cm) |
| Rear Wheel Track | 38.5 in (98 cm) |
| Ground Clearance(at differential) | 4.5 in (12 cm) |
| Power Source | 72-Volts DC |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 22.4HP (16.7 kW) - Measured at Peak Torque |
| Electric System | 72 Volt |
| Batteries(qty/type) | Nine, 8-Volt Deep Cycle |
| key or Pedal Start | |
| Battery Charger | 900 Watt, 72V DC |
| Speed Controller | 350 Amp AC |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Differential with Helical Gears |
| Gear Selection | |
| Rear Axle Ratio | 17:01 |
| Seating Capacity | 2 Persons - Bench |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | 910 lb (413 kg) (Without Batteries) |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | |
| Curb Weight | 1475 lb (669 kg) |
| Vehicle Load Capacity | 1200 lb (544.31 kg) |
| Outside Clearance Circle | 21.5 ft (6.55 m) |
| Ground Speed (level ground) | 14.5 mph +/- 0.5 mph (23.34 kph +/-0.8 kph) |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | 1500 lb (680.39 kg) max load |
| Steering | Self-compensating rack and pinion |
| Brakes | |
| Service Brake | Rear Wheel Mechanical Self-adjusting Drum |
| Parking Brake | Self-compensating, Single Point Engagement |
| Battery charging time | |
| Running Kilometers |
