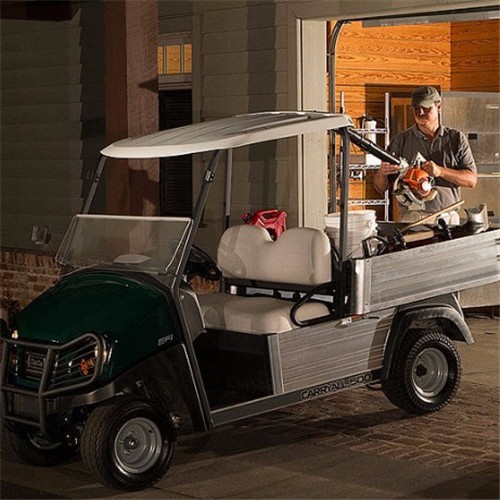

CARRYALL 500
Description
Haul bigger loads with the Carryall 500, featuring an expanded pickup bed and 1,200-pound total vehicle capacity – all constructed with the strength and durability that are the hallmarks of the Carryall series.

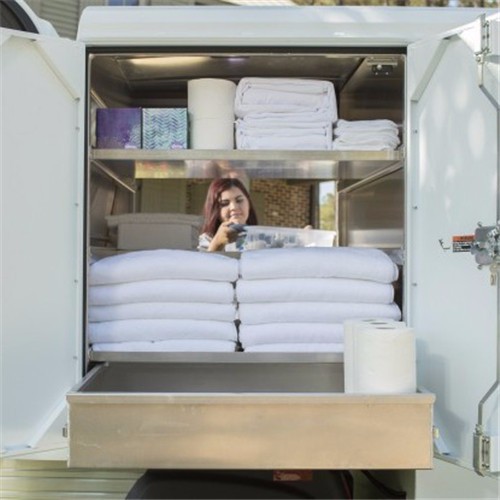

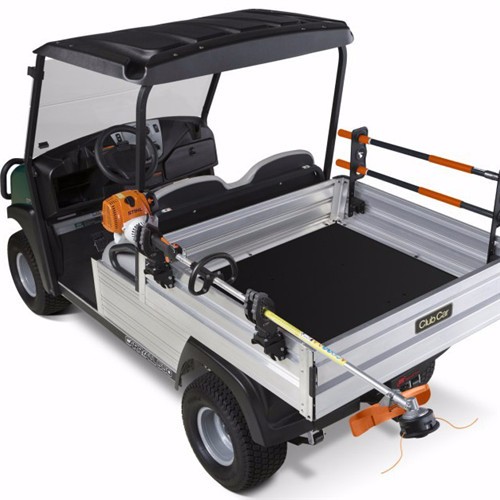

The most dependable utility vehicle in its class features a rustproof aircraft grade aluminum frame, chassis and cargo box, powered by a Subaru 404cc gasoline engine or 48-volt electric powertrain. From its sturdy front bumper to its flatbed cargo box with industrial van box options, the Carryall 500 is the perfect solution for your industrial and commercial jobs.
Key Parameters
Detailed Parameters
| Official Web | www.clubcar.com |
| Maker | CLUB CAR |
| Golfcart Type | BUSINESS TRANSPORT |
| Model | CARRYALL 500 |
| Year | 0 |
| Frame | |
| Body &Finish | |
| Front Body&Finish | ArmorFlex with automotive paint/clearcoat |
| Rear Body & Finish | Aluminum |
| Frame Chassis | |
| Overall Lenghth | 118 in (299.7cm) |
| Overall Width | |
| Overall Height | 47.1 in (119.6 cm) |
| Overall Height(no canopy) | |
| Overall Height(with canopy) | |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | |
| Rear Wheel Track | |
| Ground Clearance(at differential) | 5.6 in (14.2 cm) |
| Power Source | |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | 3.7 hp (2.7kW) rated;Peak 20 hp (14.9 kW) |
| Electric System | |
| Batteries(qty/type) | Eight 6-volt Flooded Lead Acid |
| key or Pedal Start | |
| Battery Charger | DeltaQ QuiQ (1 kW High Frequency) |
| Speed Controller | |
| Drive Train | |
| Transaxle | |
| Gear Selection | Forward/Neutral/Reverse |
| Rear Axle Ratio | 12.32:1 |
| Seating Capacity | |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | 1200 lb (544.3 kg) |
| Dry Weight(without batteries) | |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | 1024 lb (464.5 kg) |
| Curb Weight | |
| Vehicle Load Capacity | |
| Outside Clearance Circle | 248.5 in |
| Ground Speed (level ground) | |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | 71 ft-lb (96.2 N-m) rated@ 1450 RPM |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | 119 in (302.2 cm)) |
| Towing Capacity | |
| Steering | Self-adjusting Rack and Pinion |
| Brakes | |
| Service Brake | |
| Parking Brake | Foot Operated, Multi-lock |
| Battery charging time | |
| Running Kilometers |
