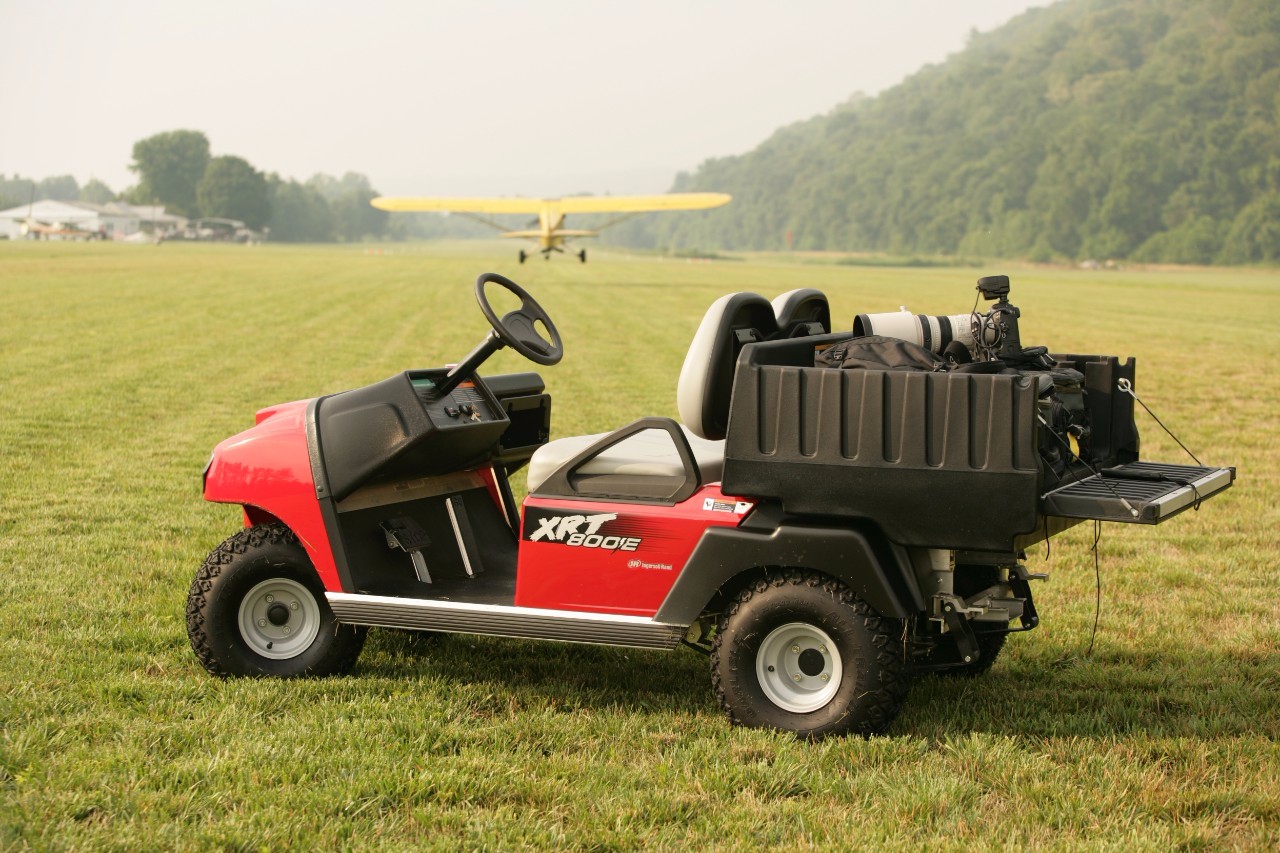

XRT800
Description
No vehicle in its class has better range, a better warranty, or is easier to operate. The XRT800 easily navigates narrow trails and wide open spaces, and its compact size allows it to go places other UTVs can’t – including the bed of a regular pickup truck.
Ride in style and comfort with one of the most well-designed light-duty vehicles on the market. The two-wheel-drive XRT800 is ideal for cruising neighborhoods, lake-front property, small farms and tight paths. And it’s great for hauling, gardening and other tasks.
Key Parameters
Detailed Parameters
| Official Web | www.clubcar.com |
| Maker | CLUB CAR |
| Golfcart Type | PERSONAL TRANSPORT |
| Model | XRT800 |
| Year | 0 |
| Frame | |
| Body &Finish | |
| Front Body&Finish | |
| Rear Body & Finish | |
| Frame Chassis | Twin I-beam welded aluminum |
| Overall Lenghth | 100 in (119 cm) |
| Overall Width | 45 in (114 cm) |
| Overall Height | 47 in (119 cm) |
| Overall Height(no canopy) | |
| Overall Height(with canopy) | |
| Intersecting Aisle | |
| Wheel Base | |
| Front Wheel Track | |
| Rear Wheel Track | |
| Ground Clearance(at differential) | 5 in (13 cm) |
| Power Source | 3.3 hp (2.5 kW) rated continuous;13 hp (9.7 kW) rated peak motor |
| RPMs | |
| Shunt Wound | |
| Output Rating | |
| Motor Control Unit | |
| Continuous Horsepower | |
| Intermittent Horsepower | |
| Horsepower(KW) | |
| Electric System | 48-volt DC, reduced-speed reverse |
| Batteries(qty/type) | |
| key or Pedal Start | |
| Battery Charger | |
| Speed Controller | |
| Drive Train | |
| Transaxle | |
| Gear Selection | |
| Rear Axle Ratio | |
| Seating Capacity | 2 Persons |
| Transmission | |
| Seating Capacity and Style | |
| Total Vehicle Capacity | |
| Dry Weight(without batteries) | 874 lb (396 kg) |
| Dry Weight(With Batteries) | |
| Curb Weight>(w/ Batteries) | |
| Curb Weight | |
| Vehicle Load Capacity | 800 lb (363 kg) |
| Outside Clearance Circle | |
| Ground Speed (level ground) | |
| Forward Speed (level ground) | |
| Reverse Speed (level ground) | |
| Programmable Speed Range | |
| Max Torque | |
| Speed Range | |
| Maximum Forward Speed | |
| Fuel Consumption On Flat Paved Road | |
| Hill Climbing Capacity | |
| Minimum Turning Radius | |
| Towing Capacity | |
| Steering | Self-adjusting rack and pinion |
| Brakes | |
| Service Brake | |
| Parking Brake | |
| Battery charging time | |
| Running Kilometers |
